Flameproof/Dustproof Indicator Box (IIB+H₂)
IND-Series
Flameproof/Dustproof Indicator Box
Ex d IIB+H₂ T6 IP65 or IP66 (Zone 1/2)
Ex tD A21 IP65 T85℃ (Zone 21/22) (IND-TD-2)
Ambient Temp. : -20 ~ +40℃

Ordering Information





Drawing





Material (Standard)



Body & Cover Cast Aluminium Alloy

Sunshade Cover

(Option)

STS 304 / EGI
Painting Color Munsell No. 7.5BG 6/1.5

*Customers can order other painting color.



Technical Data



Rated Voltage Max. 600 Vac
Rated Frequency 50/60Hz



Box Specification



Model Size(mm) T/B IP Degree
No. L*W*H Max. A

IND-2

IND-TD-2

220*330*150 20A IP65

IND-3

300*300*280 20A IP65

IND-34

300*400*210 - IP66

IND-56

500*600*260 200A IP66



Box Window & Switch Specification



Model Window Switch
No. Size (L*W) EA Size (L*W) EA EA

IND-2

IND-TD-2

48*48 3 96*48 3 -

IND-3

180*50 1 96*48 2 6

IND-34

102*135 1 - - 1

IND-56

72*72 12 105*24 5 35
80*20 5 48*48 6



Box Detail Dimension





Model

Dimension(mm)

No.

A

B C D X H

IND-2

IND-TD-2

220 330 255 280 Φ12 150

IND-3

300 300 340 240 Φ12 280

IND-34

300 400 350 300 Φ15 205

IND-56

500 600 550 500 Φ15 260

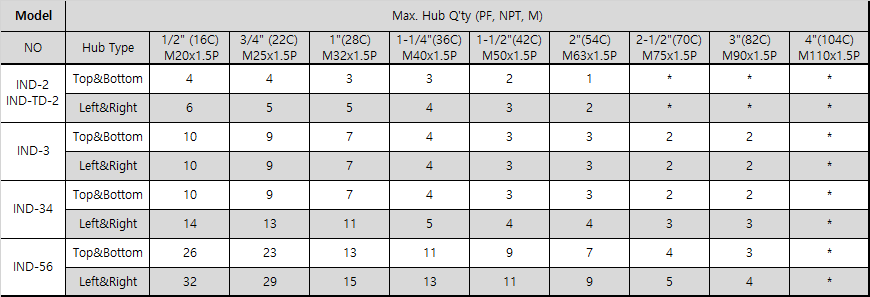

Hub Type Q'ty



Product CAD Drawing (dwg) & Catalog (pdf)



*The Drawing file(dwg) is written by AutoCAD 2000 version.

*For more information, Please contact us by mail.

IND-Series.zip
IND-Series_IIB_H2.pdf
