내압/분진방폭형 Cable Gland (고무패킹 / 주물 타입)
Ex d IIC IP66 (Zone 1/2)
Ex tD A21 IP66 (Zone 21/22)
Ambient Temp. : -20 ~ +80℃

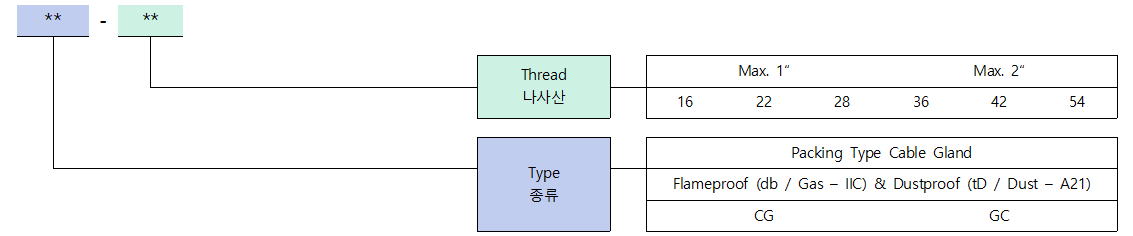

Ordering Information
Drawing
| Model | Drawing |
| CG |  |
| GC |  |
Material (Standard)
| Body | Cast Aluminium Alloy |
Specification
| Model |
Weight (kg) |
Cable Dia. (mm) |
Thread |
| CG-16 | 0.1 | 6~8 |
PF/NPT 1/2" (16C) M20x1.5P |
| GC-16 | 0.15 | ||
| CG-22 | 0.15 | 11~13 |
PF/NPT 3/4" (22C) M25x1.5P |
| GC-22 | 0.2 | ||
| CG-28 | 0.2 | 18~20 |
PF/NPT 1" (28C) M32x1.5P |
| GC-28 | 0.25 | ||
| CG-36 | 0.35 | 21~23 |
PF/NPT 1-1/4" (36C) M40x1.5P |
| GC-36 | 0.4 | ||
| CG-42 | 0.9 | 32~34 |
PF/NPT 1-1/2" (42C) M50x1.5P |
| GC-42 | 0.9 | ||
| CG-54 | 1.15 | 43~45 |
PF/NPT 2" (54C) M63x1.5P |
| GC-54 | 1.4 |

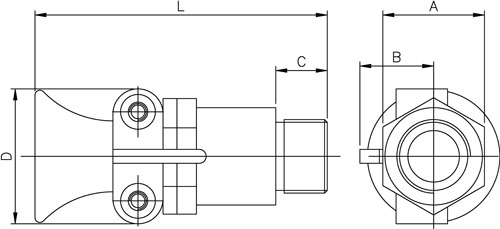

Dimension - CG
| Model | Thread (A) | Dimension | |||
| B | C | D(Max.) | E | ||
| CG-16 |
PF/NPT 1/2" (16C) M20x1.5P |
18 | 46 | 73 | 24 |
| CG-22 |
PF/NPT 3/4" (22C) M25x1.5P |
18.5 | 48.5 | 86.5 | 26.5 |
| CG-28 |
PF/NPT 1" (28C) M32x1.5P |
23 | 59 | 92.5 | 28 |
| CG-36 |
PF/NPT 1-1/4" (36C) M40x1.5P |
25 | 66 | 99 | 40 |
| CG-42 |
PF/NPT 1-1/2" (42C) M50x1.5P |
26 | 85 | 151 | 50 |
| CG-54 |
PF/NPT 2" (54C) M63x1.5P |
27 | 93 | 167 | 54.5 |

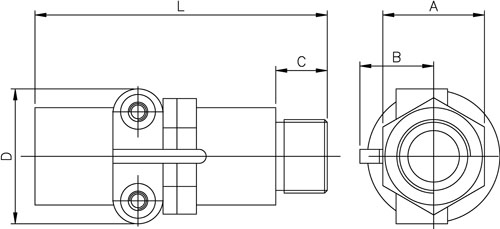

Dimension - GC
| Model | Thread | Dimension | ||||
| A | B | C | D | E(Max.) | F | |
| GC-16 |
PF/NPT 1/2" (16C) M20x1.5P |
18 | 46 | 73 | 24 | |
| GC-22 |
PF/NPT 3/4" (22C) M25x1.5P |
18.5 | 48.5 | 86.5 | 26.5 | |
| GC-28 |
PF/NPT 1" (28C) M32x1.5P |
23 | 59 | 92.5 | 28 | |
| GC-36 |
PF/NPT 1-1/4" (36C) M40x1.5P |
25 | 66 | 99 | 40 | |
| GC-42 |
PF/NPT 1-1/2" (42C) M50x1.5P |
26 | 85 | 151 | 50 | |
| GC-54 |
PF/NPT 2" (54C) M63x1.5P |
27 | 93 | 167 | 54.5 | |
