내압/분진방폭형 Reducer & Socket
Ex d IIC IP66 (Zone 1/2)
Ex tD A21 IP66 (Zone 21/22) (WCRE-1 / WCSK-1)
Ambient Temp. : -20 ~ +40℃
Ambient Temp. : -20 ~ +80℃ (WCRE-1 / WCSK-1)

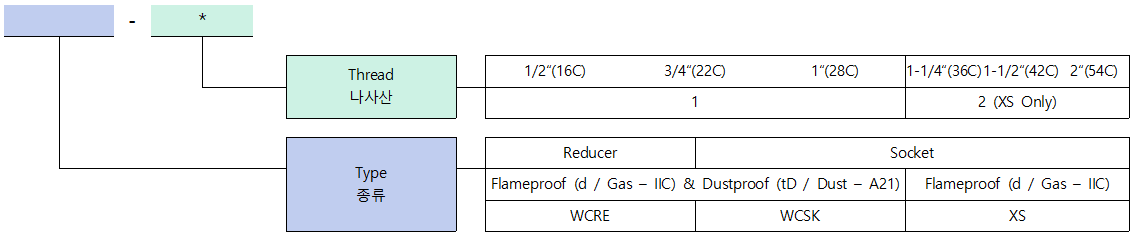

Ordering Information
Drawing
| Type | Drawing |
|

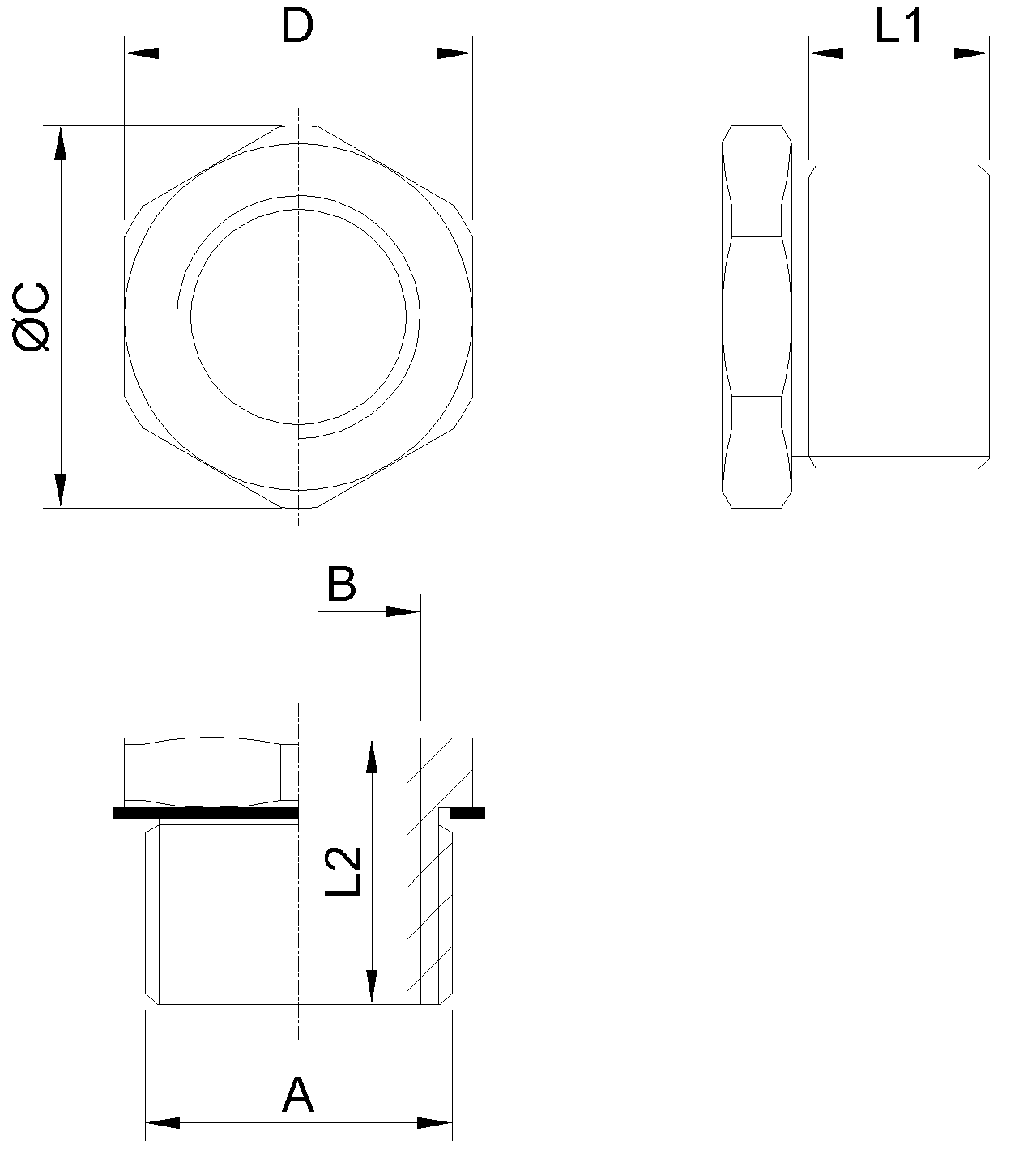

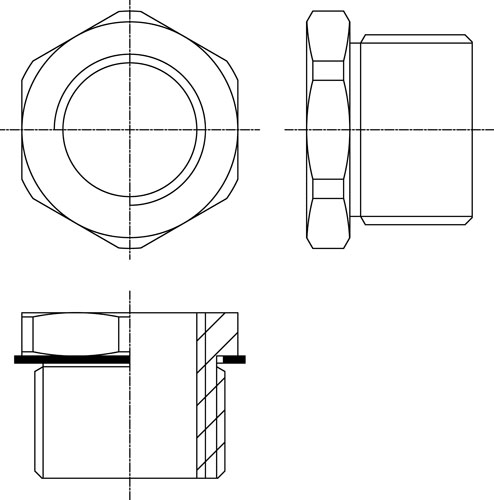

Reducer (WCRE-1) |
 |
|

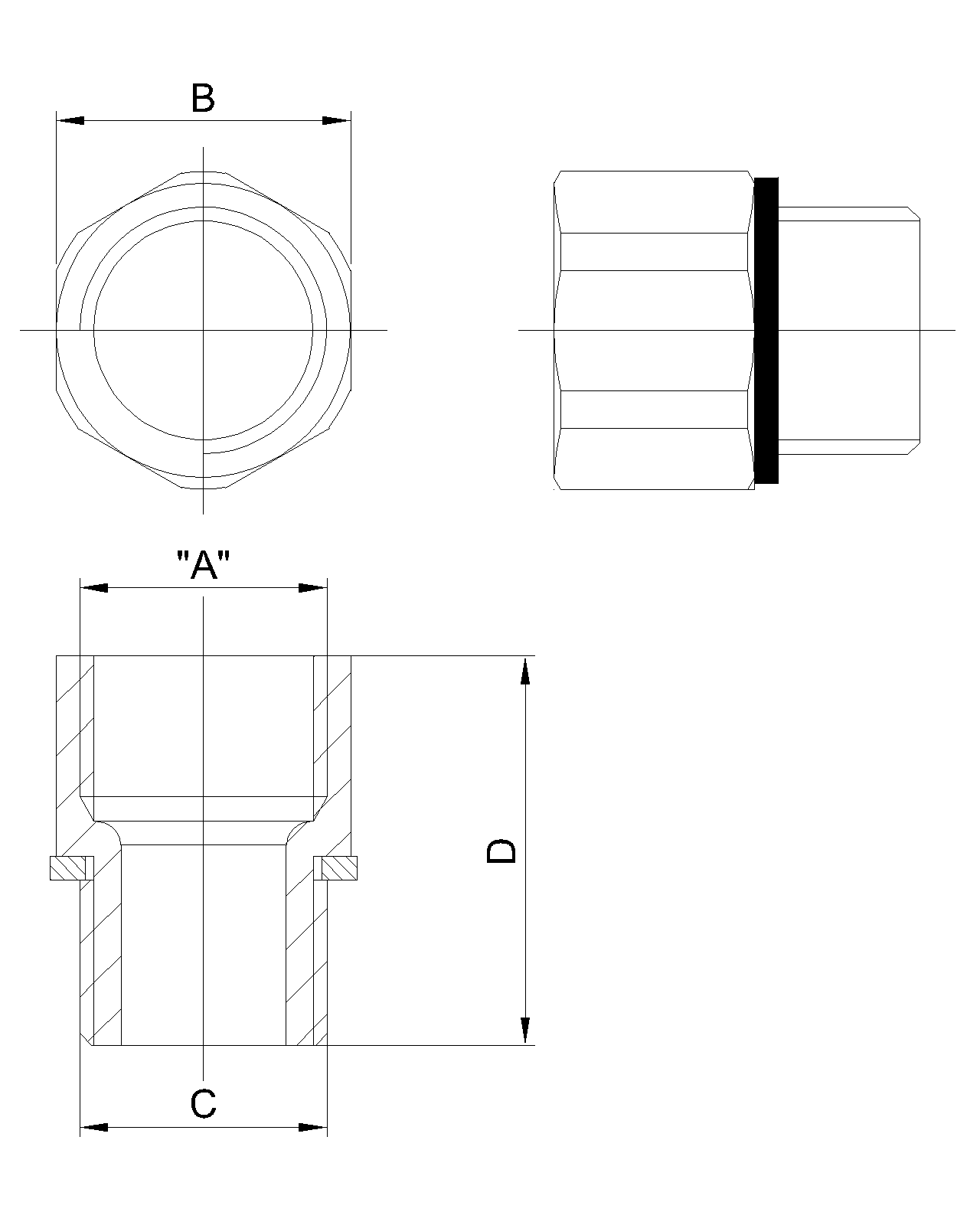

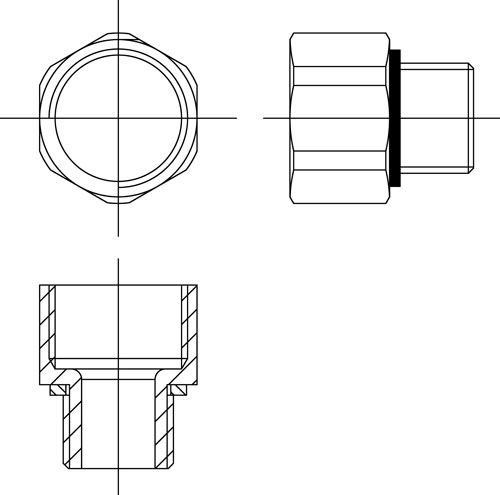

Socket (WCSK-1) (XS-1,2) |
 |
Material (Standard)
| Body | Steel (Zn-Plated) |
Specification - Reducer
| Model | Thread | Dimension | ||||
| A | B | L1 | L2 | C | D | |
| WCRE-1 |
PF/NPT 1/2" (16C) M20x1.5P |
M16x1.5P |
12 | 19 | 30 | 27 |
|
PF/NPT 3/4" (22C) M25x1.5P |
PF/NPT 1/2" (16C) M16x1.5P M20x1.5P |
15 | 23 | 33 | 30 | |
|
PF/NPT 1" (28C) M32x1.5P |
PF/NPT 1/2" (16C) PF/NPT 3/4" (22C) M16x1.5P M20x1.5P M25x1.5P |
18 | 26 | 39.5 | 36 | |
Specification - Socket
| Model | Thread | Dimension | ||
| A | C | B | D | |
| WCSK-1 |
PF/NPT 1/2" (16C) M20x1.5P |
PF/NPT 1/2" (16C) M16x1.5P M20x1.5P |
25 | 31 |
|
PF/NPT 3/4" (22C) M25x1.5P |
PF/NPT 1/2" (16C) PF/NPT 3/4" (22C) M16x1.5P M20x1.5P M25x1.5P |
30 | 35 | |
|
PF/NPT 1" (28C) M32x1.5P |
PF/NPT 1/2" (16C) PF/NPT 3/4" (22C) PF/NPT 1" (28C) M16x1.5P M20x1.5P M25x1.5P M32x1.5P |
38 | 38.5 | |
| XS-1 |
PF/NPT 1-1/4" (36C) M40x1.5P |
PF/NPT 3/4" (22C) M25x1.5P |
46 | 44 |
|
PF/NPT 1-1/4" (36C) M40x1.5P |
PF/NPT 1" (28C) M32x1.5P |
46 | 44 | |
|
PF/NPT 1-1/2" (42C) M50x1.5P |
58 | 44 | ||
| XS-2 |
PF/NPT 1-1/2" (42C) M50x1.5P |
PF/NPT 1-1/4" (36C) M40x1.5P |
54 | 44 |
|
PF/NPT 2" (54C) M63x1.5P |
67 | 46 | ||
|
PF/NPT 2" (54C) M63x1.5P |
PF/NPT 1-1/2" (42C) M50x1.5P |
67 | 46 | |
|
PF/NPT 2-1/2" (70C) M75x1.5P |
82 | 48 | ||
|
PF/NPT 2-1/2" (70C) M75x1.5P |
PF/NPT 2" (54C) M63x1.5P |
82 | 48 | |
|
PF/NPT 3" (82C) M90x1.5P |
95 | 56 | ||
