안전증/분진방폭형 Junction Box
Ex e / Ex t (Ex tD)
Ambient Temp. : -20 ~ +40℃

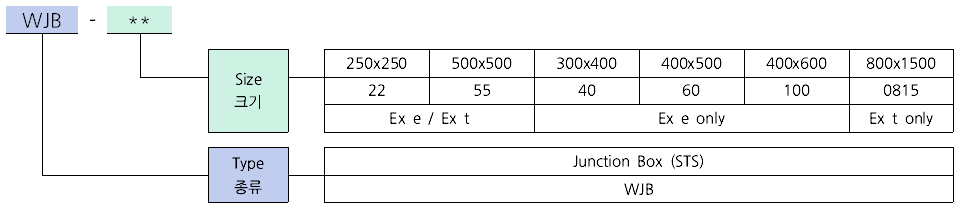

Ordering Information
Ex Structure
| Model | Ex Structure |
| WJB-22 |
Ex e IIC T5/T6 IP66 (Zone 1/2) Ex tD A21 IP66 T100℃/T85℃ (Zone 21/22) |
| WJB-55 |
Ex e IIC T4/T5 IP66 (Zone 1/2) Ex tD A21 IP66 T135℃/T100℃ (Zone 21/22) |
| WJB-40 |
Ex e II T5 IP65 (Zone 1/2) (Increased Safety Only) |
| WJB-60 | |
| WJB-100 | |
| WJB-0815 |
Ex tb IIIC T85℃ Db IP66 (Zone 21/22) (Dustproof Only) |

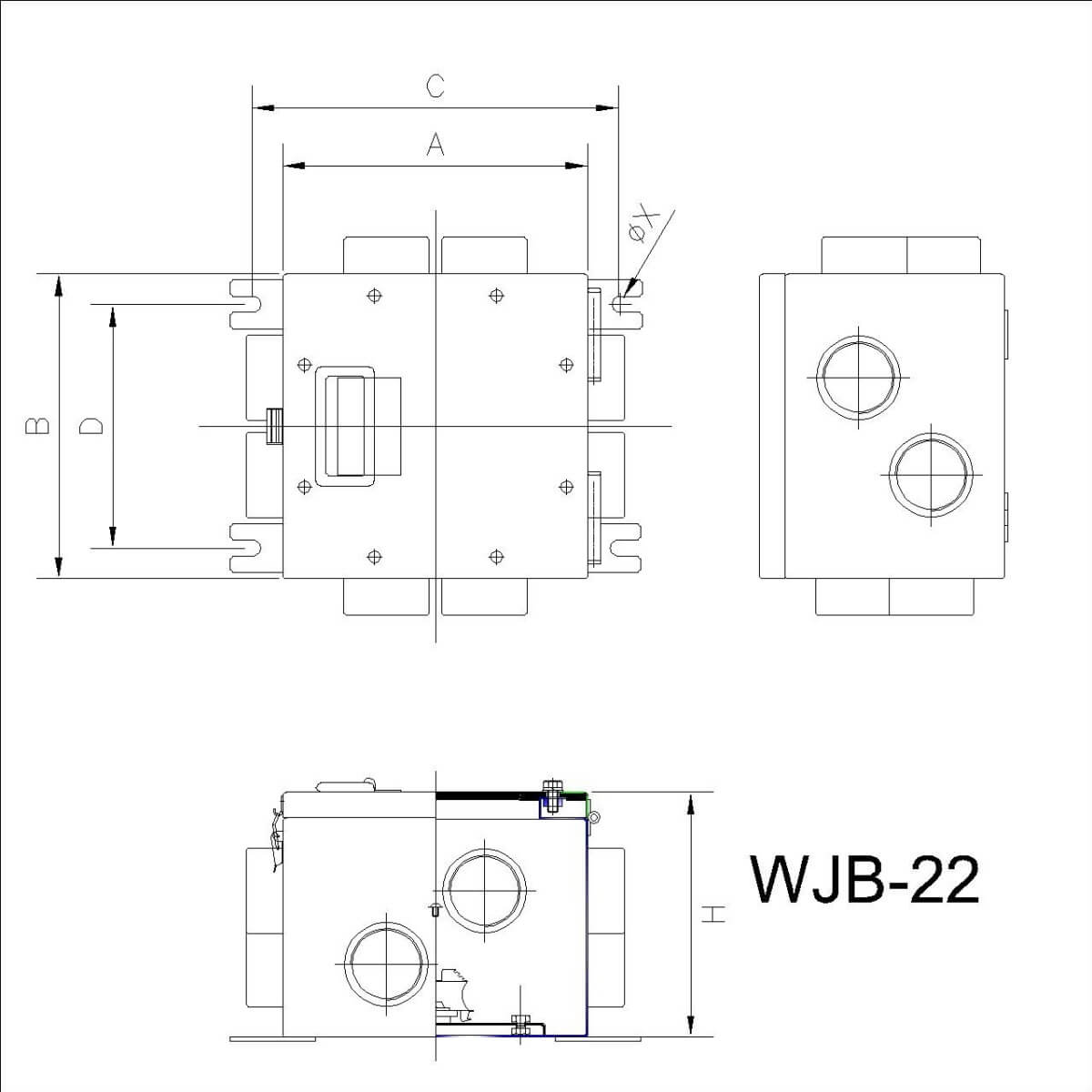

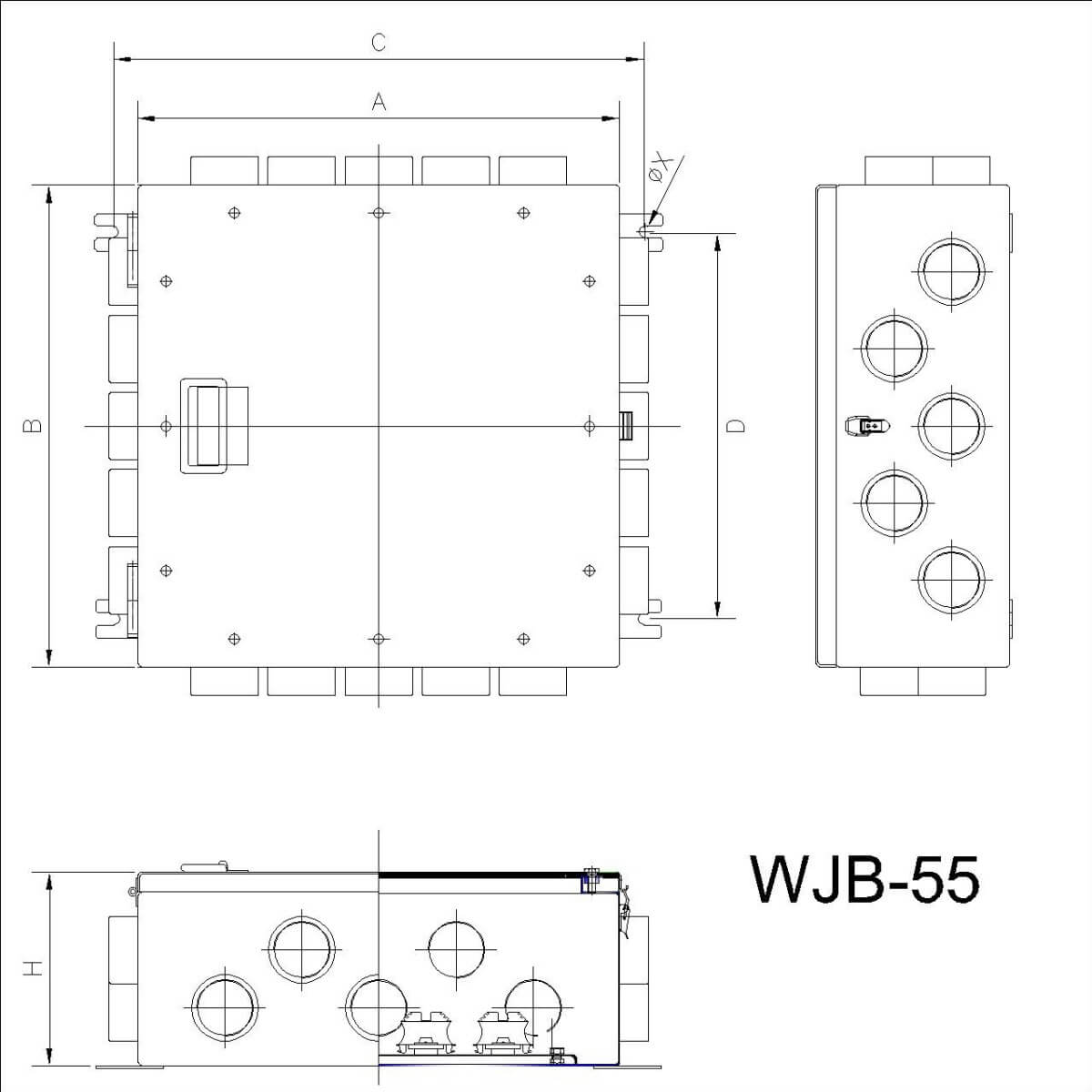

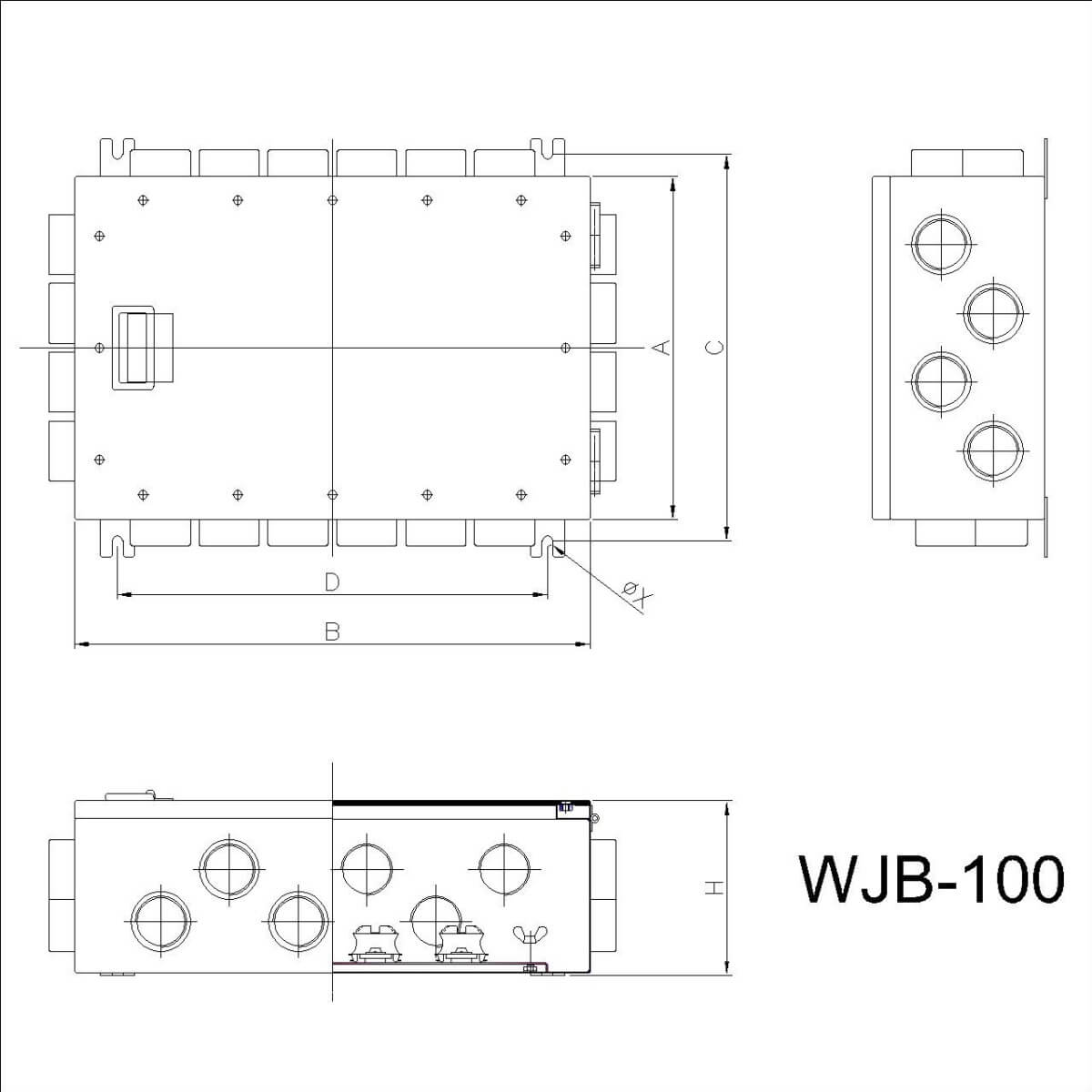

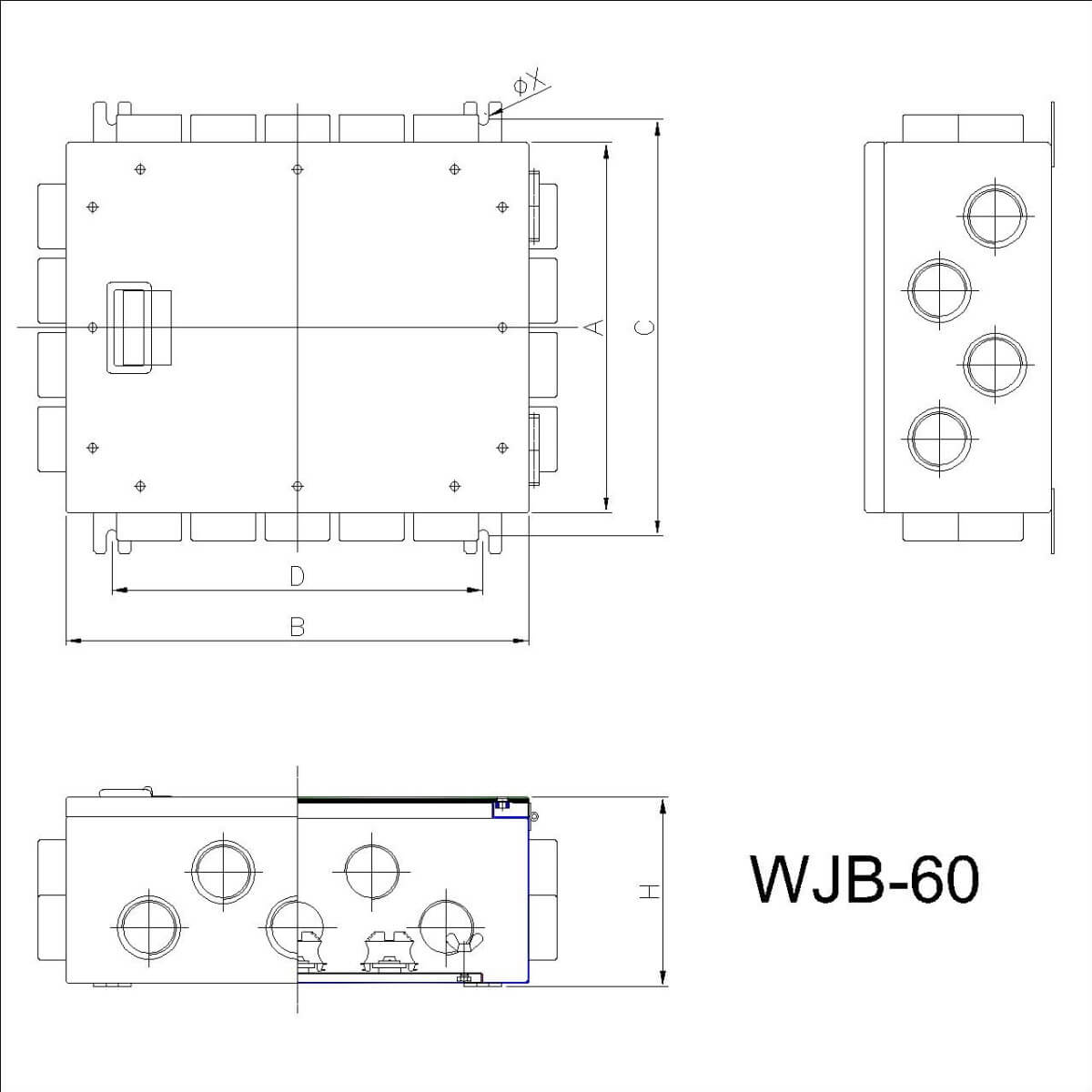

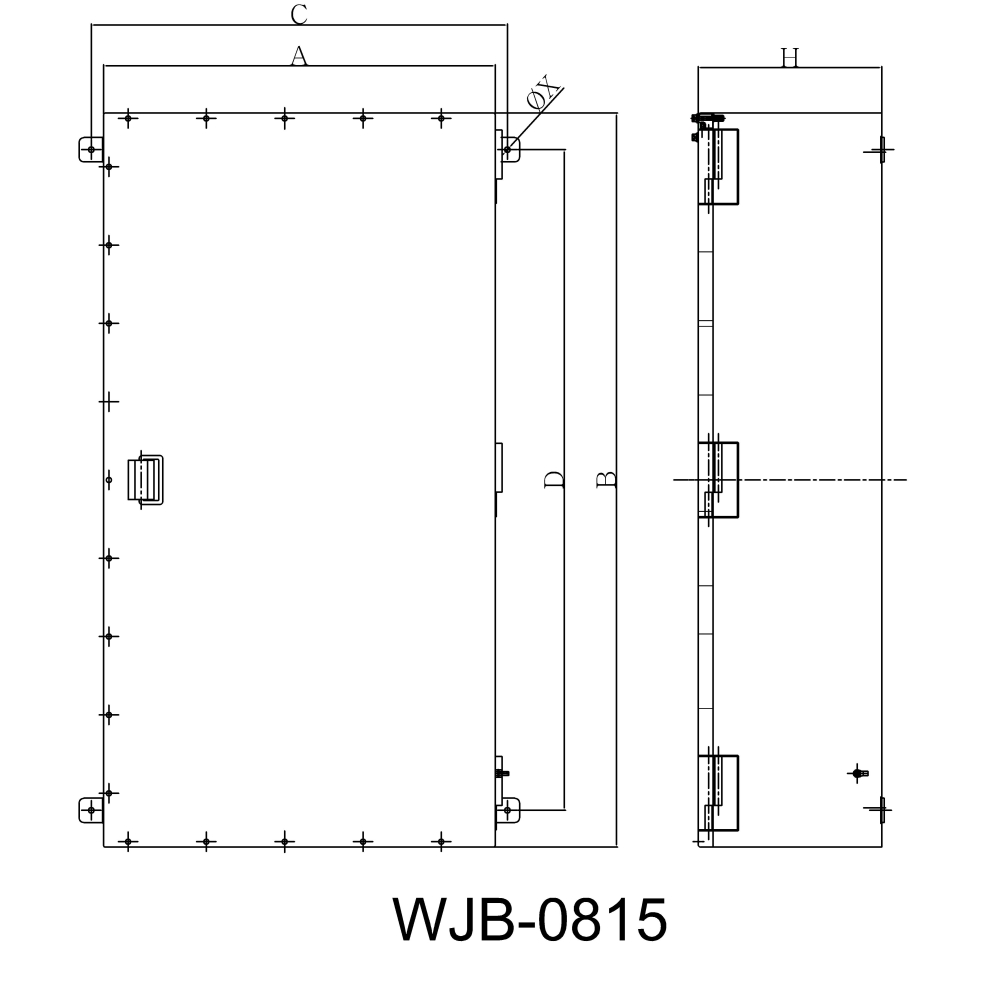

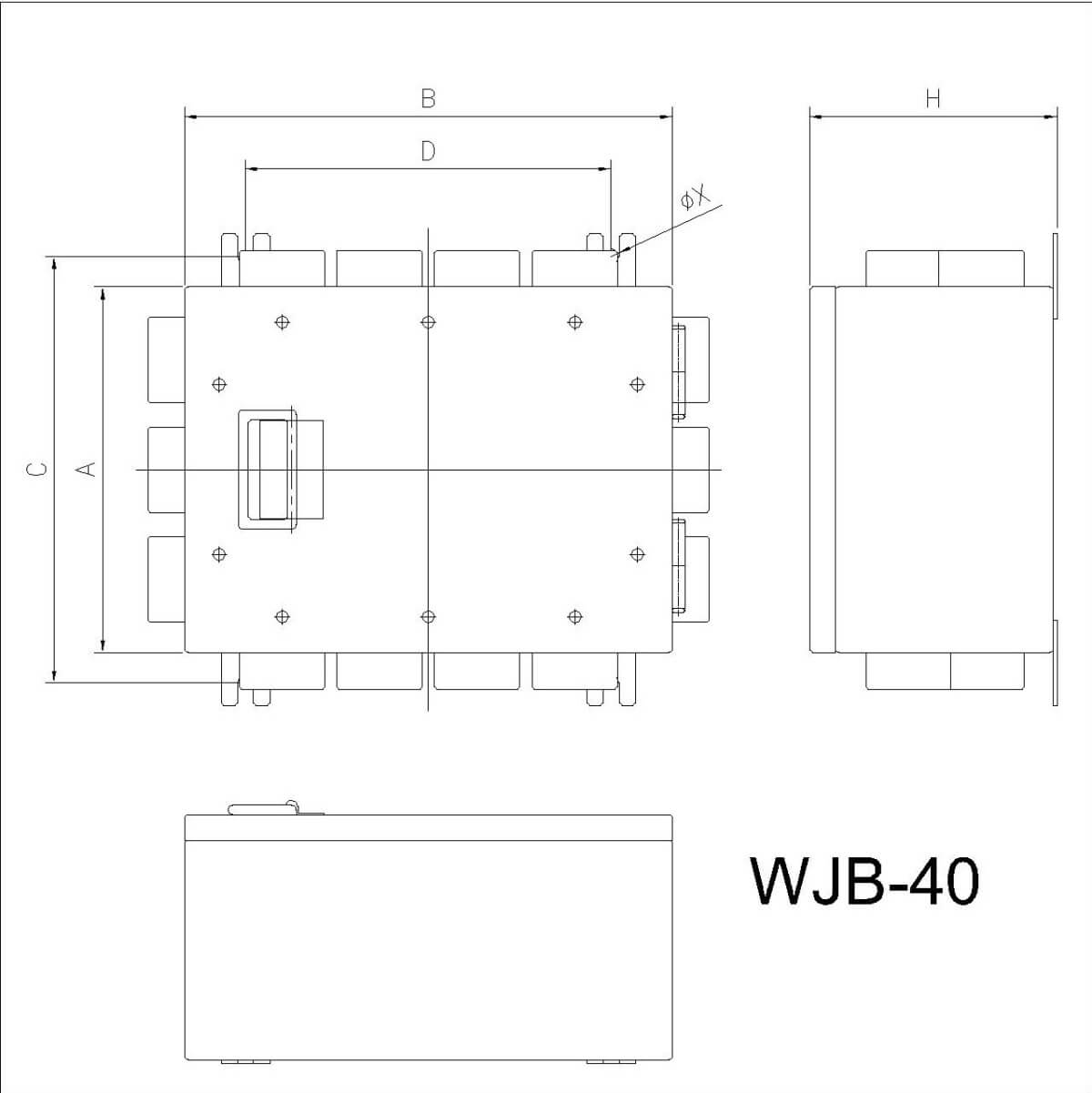

Drawing
Material (Standard)
| Body & Cover | Stainless Steel |
Technical Data
| Rated Voltage | Max. 600 Vac |
| Rated Frequency | 50/60Hz |
Box Specification
| Model | Size(mm) | T/B | |
| No. | L*W*H | Max. A | Max. P |
| WJB-22 | 250*250*200 | 125A | 60P |
| WJB-55 | 500*500*200 | 125A | 100P |
| WJB-40 | 300*400*204 | 15A | 40P |
| WJB-60 | 400*500*204 | 15A | 60P |
| WJB-100 | 400*600*204 | 15A | 80P |
| WJB-0815 | 800*1500*375 | 400A |
400P |

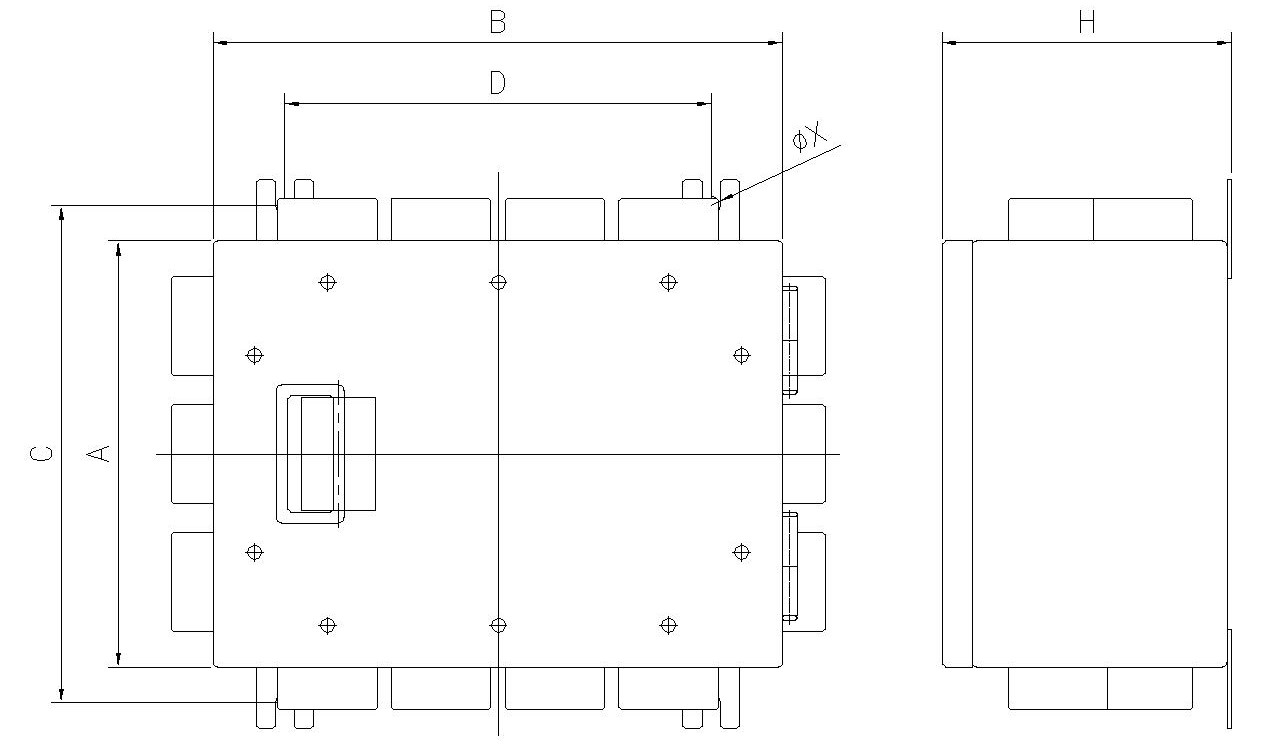

Box Detail Dimension
| Model |
Dimension(mm) |
|||||
| No. |
A |
B | C | D | X | H |

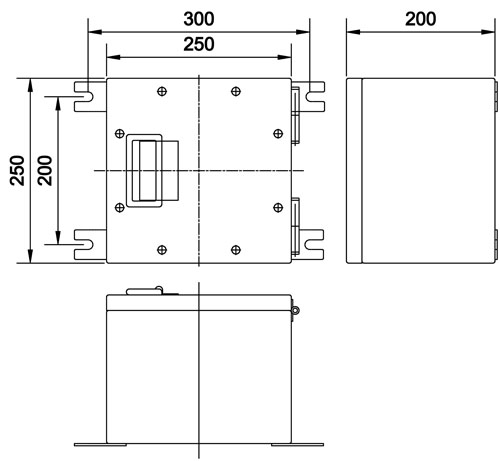

| WJB-22 | 250 | 250 | 300 | 200 | Φ11 | 200 |
| WJB-55 | 500 | 500 | 550 | 400 | Φ11 | 200 |

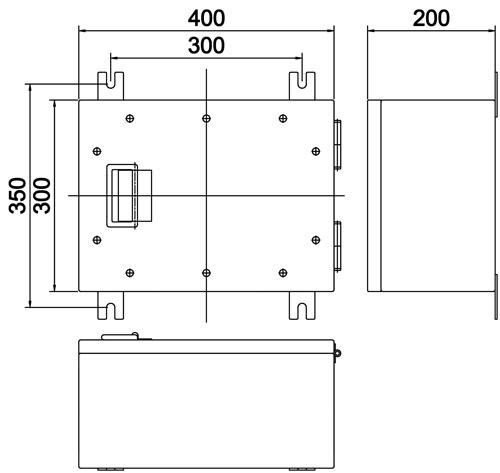

| WJB-40 | 300 | 400 | 350 | 300 | Φ12 | 204 |
| WJB-60 | 400 | 500 | 450 | 400 | Φ15 | 204 |

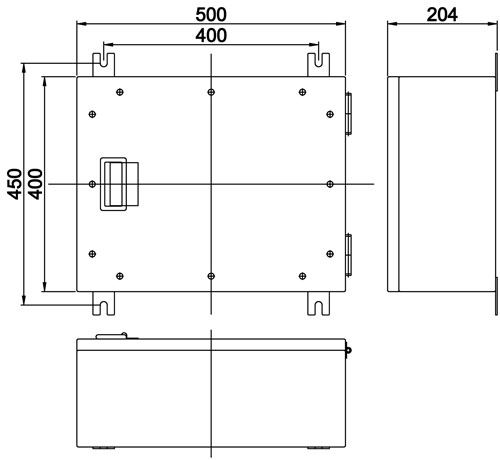

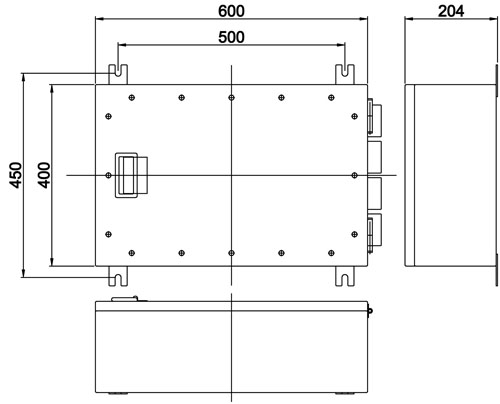

| WJB-100 | 400 | 600 | 450 | 400 | Φ15 | 204 |

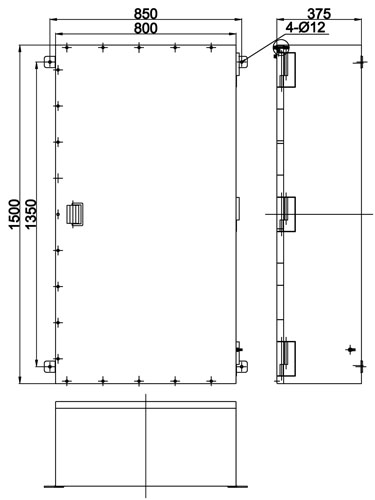

| WJB-0815 | 800 | 1500 | 850 | 1350 | Φ12 | 375 |

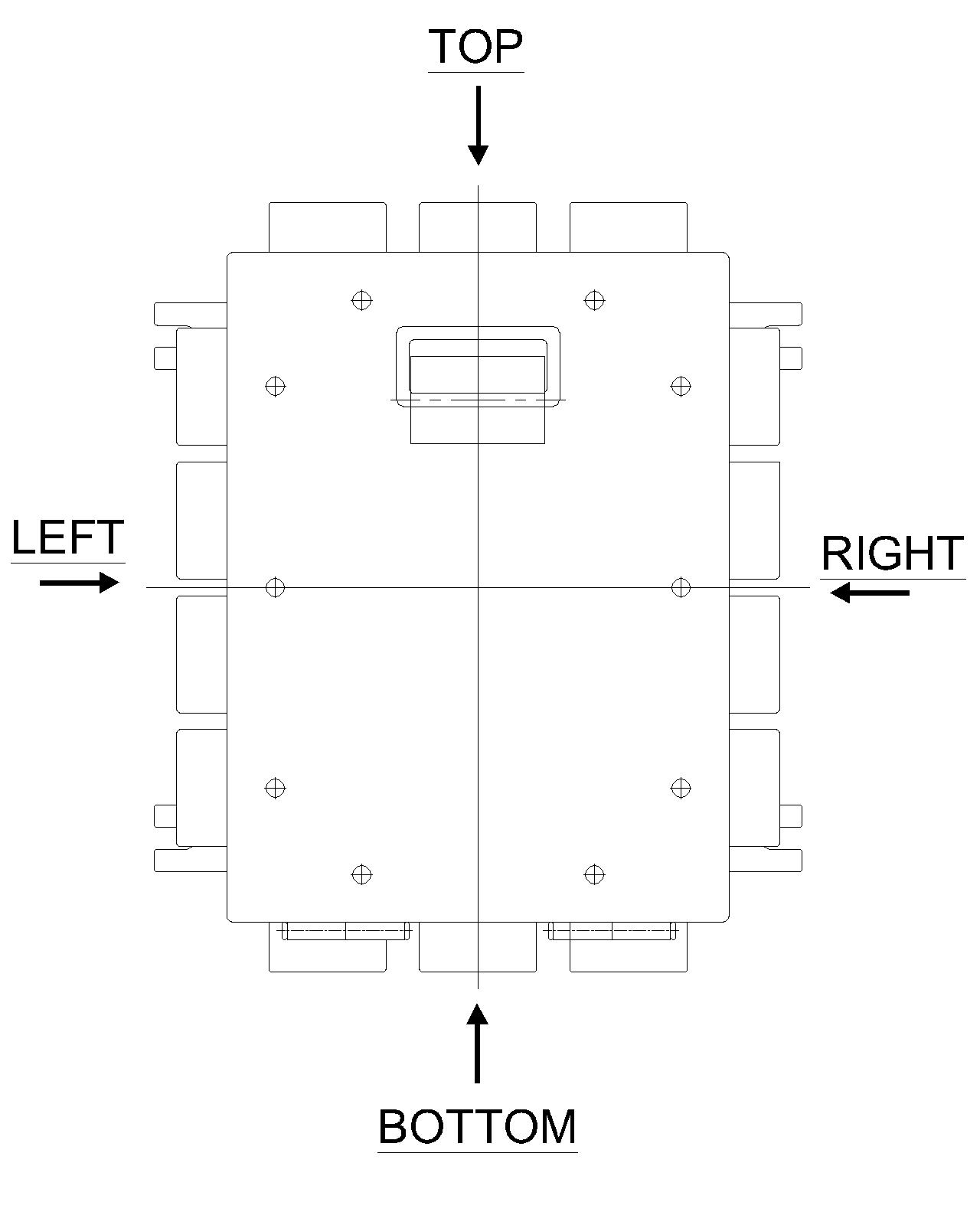

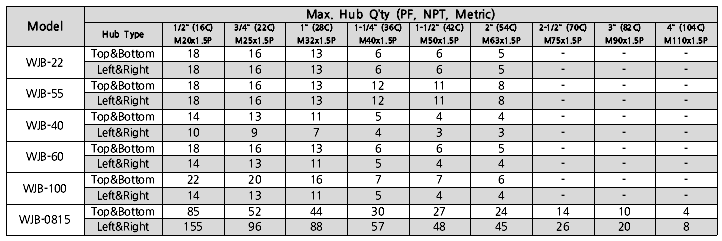

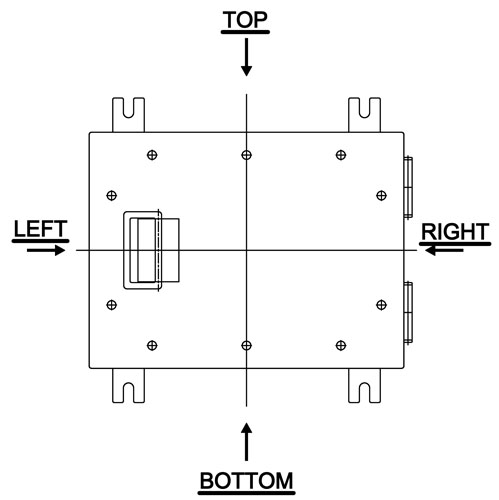

Hub Type Q'ty
