내압/분진방폭형 Limit Switch
Ex d IIC T6 (Zone 1/2)
Ex tD A21 IP65 T85℃ (Zone 21/22)
Ambient Temp. : -20 ~ +40℃

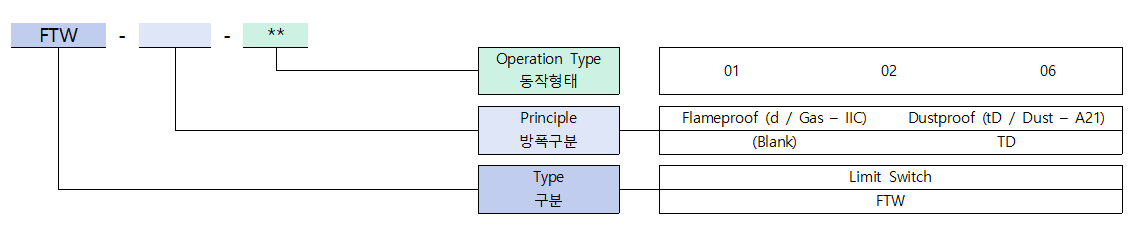

Ordering Information
Material (Standard)
| Body & Cover | Die-Cast Aluminium Alloy |
| Weight | 1.3kg |
Technical Data
| Rated Voltage | Max. AC 220V (d) / Max. AC 250V (tD) |
| Rated Frequency | 50/60Hz |
| Rated Current | 20 A |

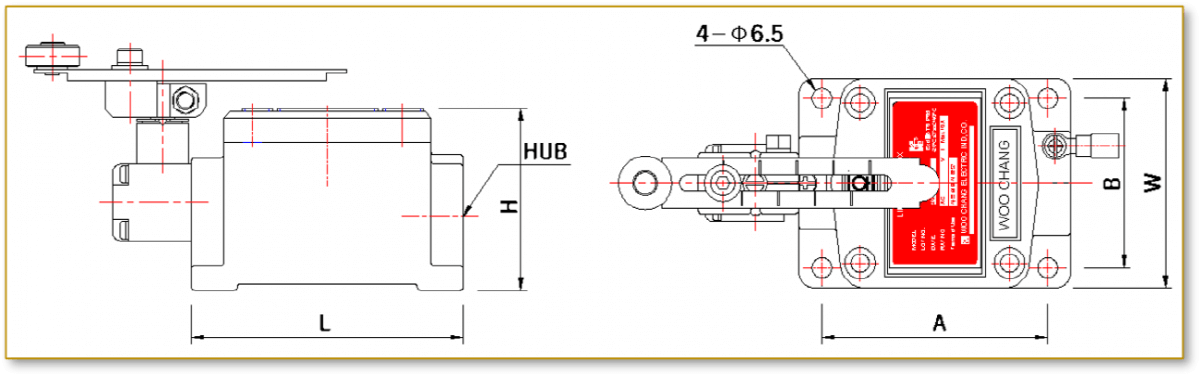

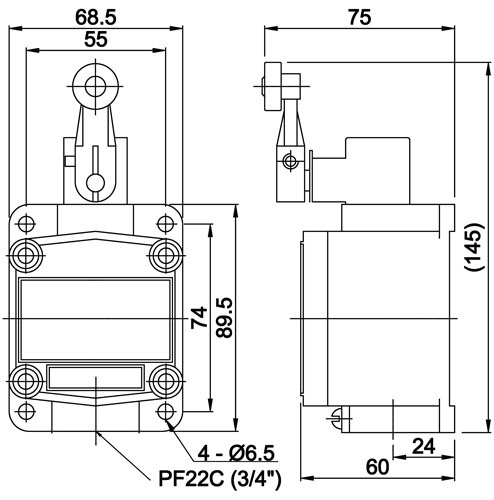

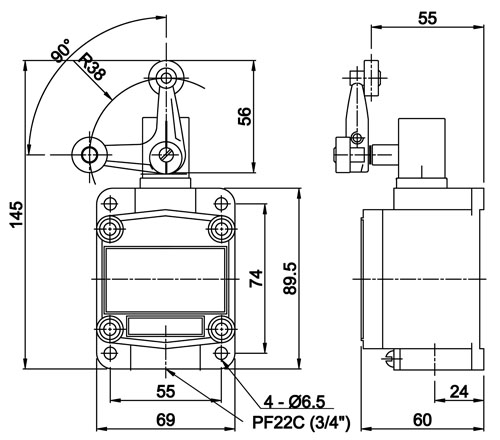

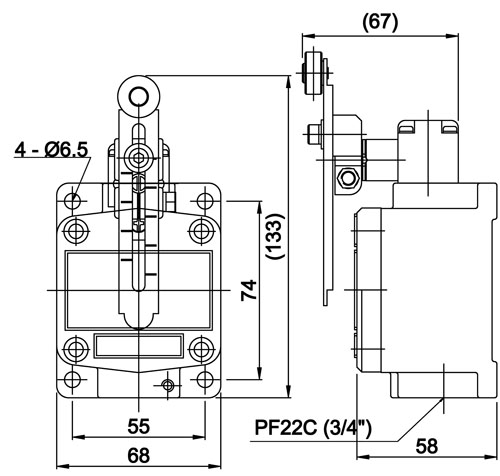

Box Detail Dimension & Drawing
| Model |
Dimension(mm) |
||||
| L | W | H | A | B | |
|
FTW-01 FTW-02 FTW-06 |
89.5 | 68 | 60 | 74 | 55 |
