내압/분진방폭형 경광등(Alarm Signal)
Ex db IIC T6 Gb IP66 (Zone 1/2)
Ex tD A21 IP66 T85℃ (Zone 21/22)
Ambient Temp. : -20 ~ +40℃

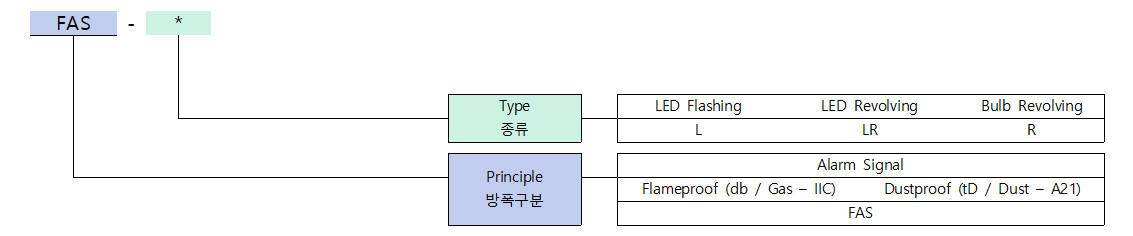

Ordering Information
Material (Standard)
| Body | Cast Aluminium Alloy |
| Globe | Heat Resistant Hard Glass |
| Globe Guard | Die-Cast Aluminium Alloy |
| Weight | 5kg |
Technical Data
| Rated Voltage | Max. AC 240V, DC 12~24V |
| Rated Frequency | 50/60Hz |
| Rated Wattage | Max. 5W |
| Hub | 2 - PF 3/4" (22C) |

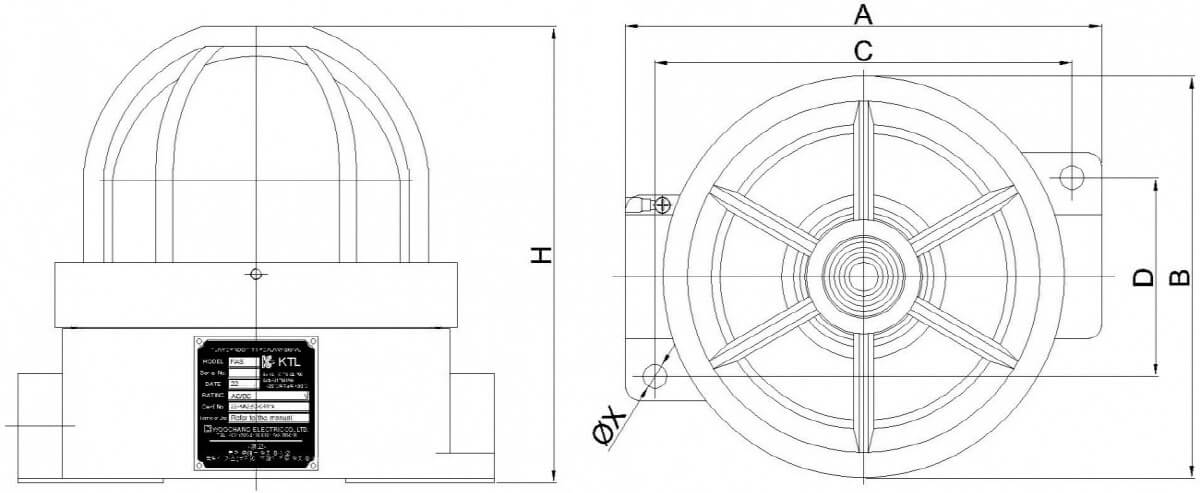

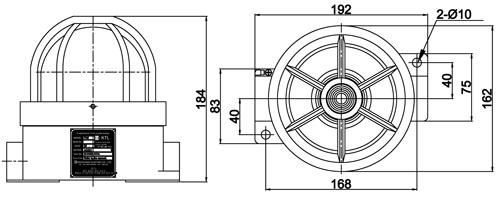

Drawing & Specification
|
Model |
Type |
Dimension
|
|||||
|
A |
B | C | D | X |
H |
||
| FAS-L |
LED Flashing (LED 점등/점멸식) |
192 | 162 | 168 | 80 | 10 | 184 |
| FAS-LR |
LED Revolving (LED 반사경 회전식) |
||||||
| FAS-R |
Bulb Revolving (전구 반사경 회전식) |
||||||
