내압방폭형 정온식 감지기 (Temperature Detector)
Ex d IIB+H2 T6 (Zone 1/2)
Ambient Temp. : -20 ~ +40℃

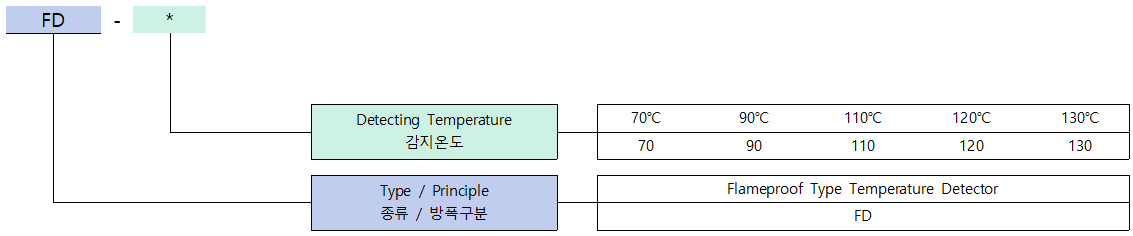

Ordering Information
Material (Standard)
| Body & Cover | Die-Cast Aluminium Alloy |
| Hub | 3 - PF 1/2" (16C) |
| Weight | 0.8kg |
Technical Data
| Rated Voltage | DC 24V |
| Rated Frequency | 50/60Hz |
| Detecting Temperature | 70℃/90℃/110℃/120℃/130℃ |

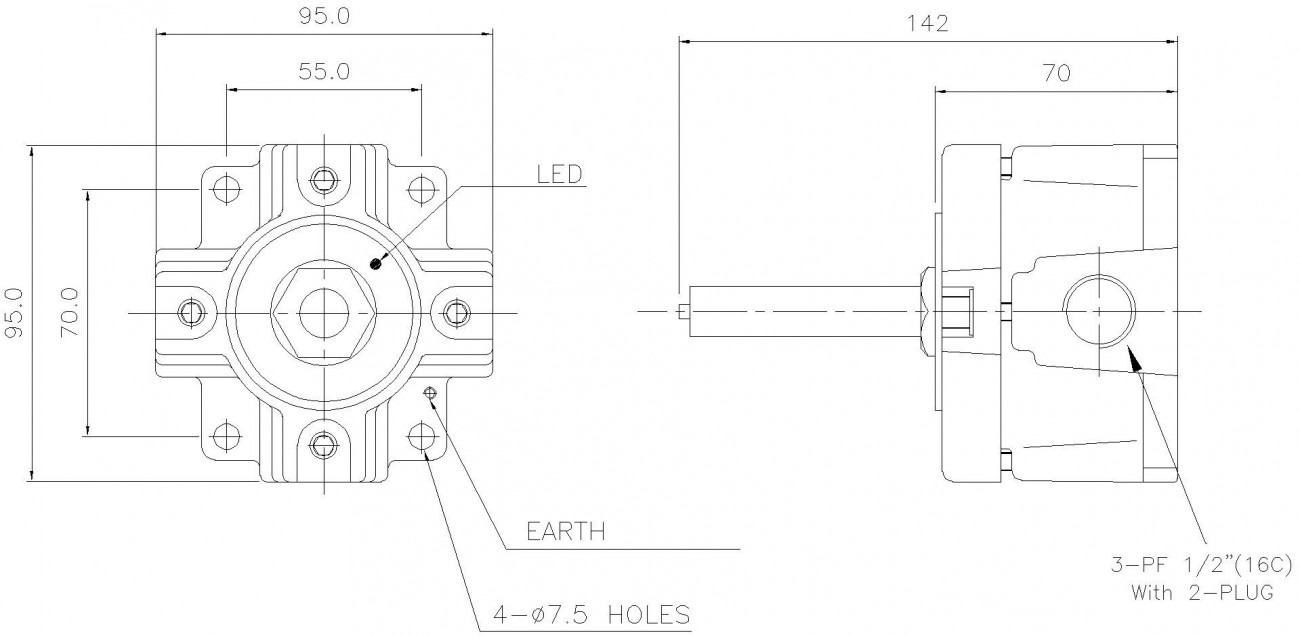

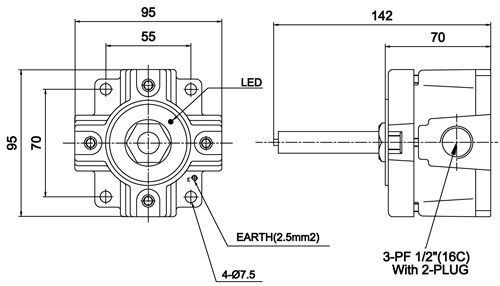

Drawing & Specification
|
Model |
Size |
Operation Principle |
Sensing Area | |
| Installation Height | ||||
| 4m | 8m | |||
| FD-Series | 95x95x147 | Barrel Expansion Type | 70㎡ | 35㎡ |
| Electronic Type | ||||
