내압/분진방폭형 Circuit Breaker Box
Ex d IIB+H₂ T6/T5 IP65 (Zone 1/2) (FCN-22)
Ex d IIC T6 (Zone 1/2) (FCN-12)
Ex tD A21 IP65 T85℃ (Zone 21/22) (FCN-TD-21)
Ambient Temp. : -20 ~ +40℃

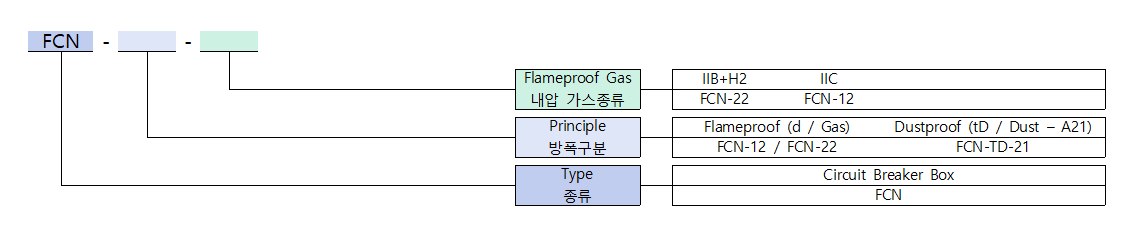

Ordering Information
Material (Standard)
| Body & Cover | Cast Aluminium Alloy |
|
Sunshade Cover (Option) (Not for FCN-12) |
STS 304 / EGI |
| Painting Color | Munsell No. 7.5BG 6/1.5 |
*Customers can order other painting color.
Technical Data
| Rated Voltage / Current | Max. 600 Vac, Max. 200A |
| Rated Frequency | 50/60Hz |

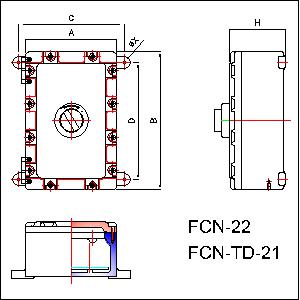

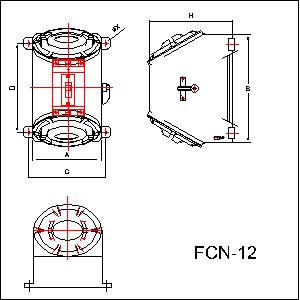

Box Detail Dimension & Drawing
| Model |
Dimension(mm) |
|||||
| No. |
A |
B | C | D | X | H |

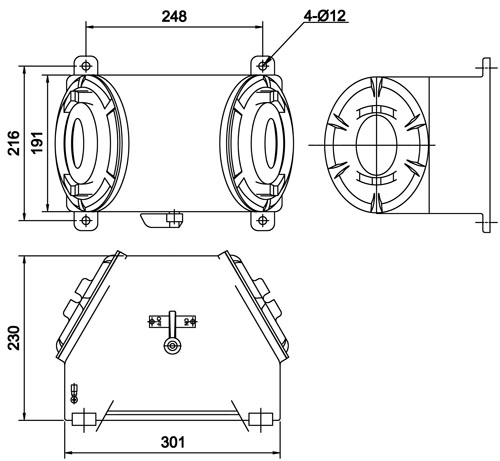

| FCN-12 | 191 | 301 | 216 | 247 | Φ11 | 230 |
|
FCN-22 FCN-TD-21 |

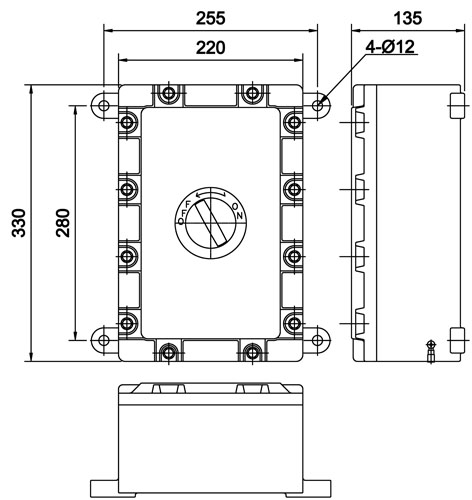

220 | 330 | 255 | 280 | Φ12 | 135 |

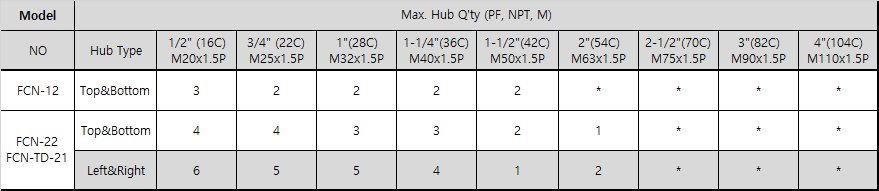

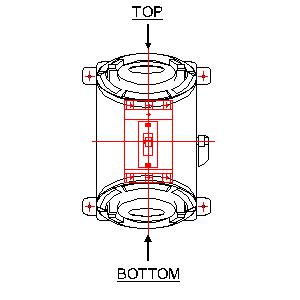

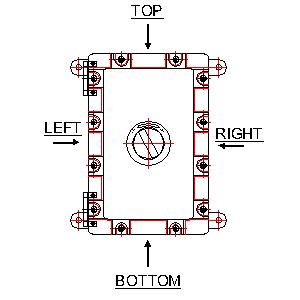

Hub Type Q'ty
