내압방폭형 연동제어기 (Interlock Controller)
Ex d IIB+H2 T6/T5 IP65 (Zone 1/2)
Ambient Temp. : -20 ~ +40℃ / +55℃

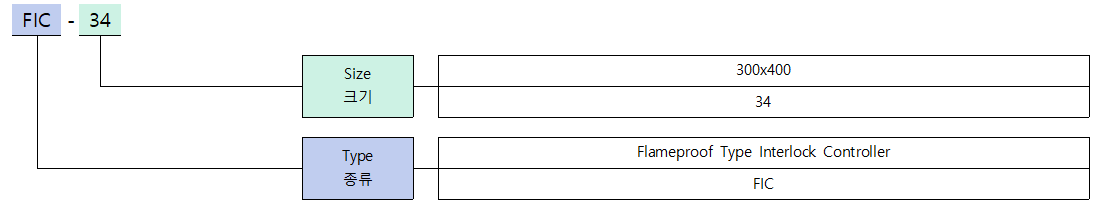

Ordering Information
Material (Standard)
| Body & Cover | Cast Aluminium Alloy |
| Sunshade Cover | STS 304 / EGI |
Technical Data
| Rated Voltage | Max. 440V |
|
DC 24V (Battery) |
|
| Rated Frequency | 50/60Hz |
| Rated Current | Max. 1.2A |

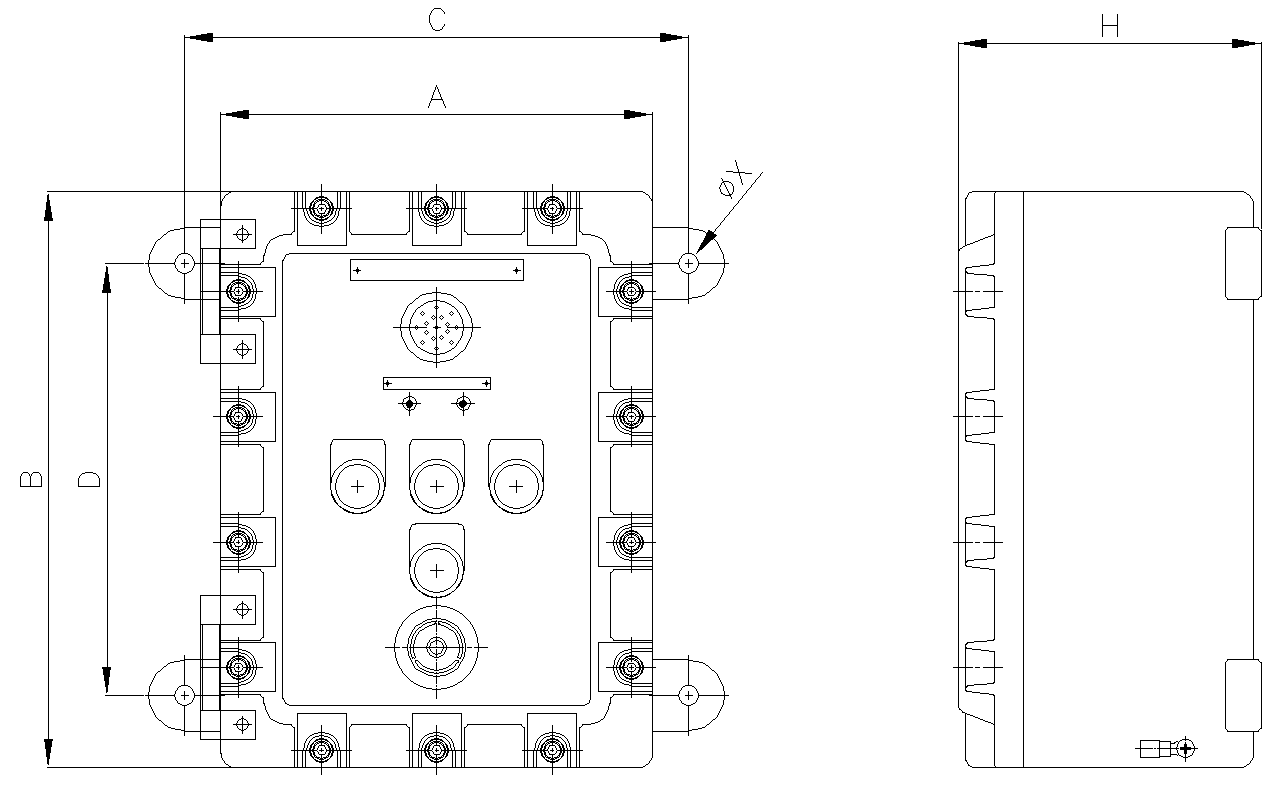

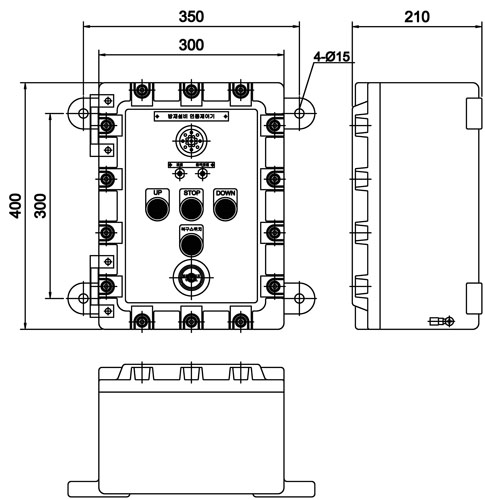

Box Detail Dimension & Drawing
|
Dimension(mm) |
||||||
|
Size |
A |
B | C | D | X | H |
| 300*400*210 | 300 | 400 | 350 | 300 | 15 | 210 |

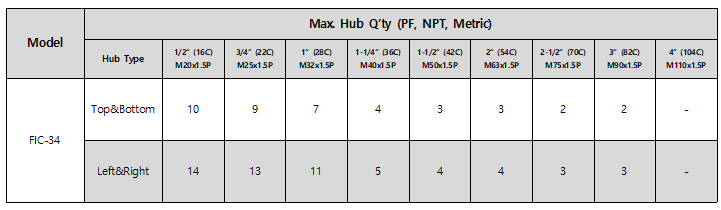

Hub Type Q'ty
