내압안전증/분진방폭형 LED등기구(30~60W)(Round Box형)
Ex db eb IIC T5 Gb IP66 (Zone 1/2)
Ex tb IIIC T100℃ Db IP66 (Zone 21/22)
Ambient Temp. : -20 ~ +40℃
Life Time : + 50,000hr

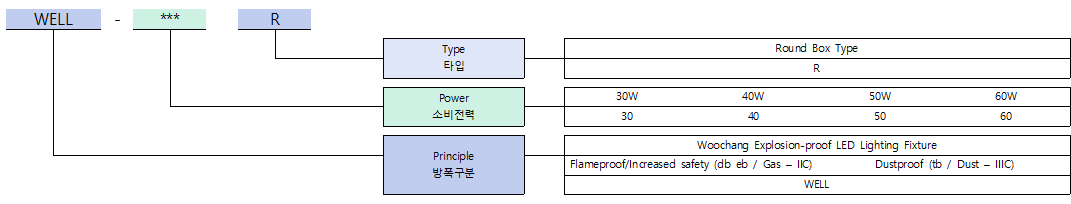

Ordering Information

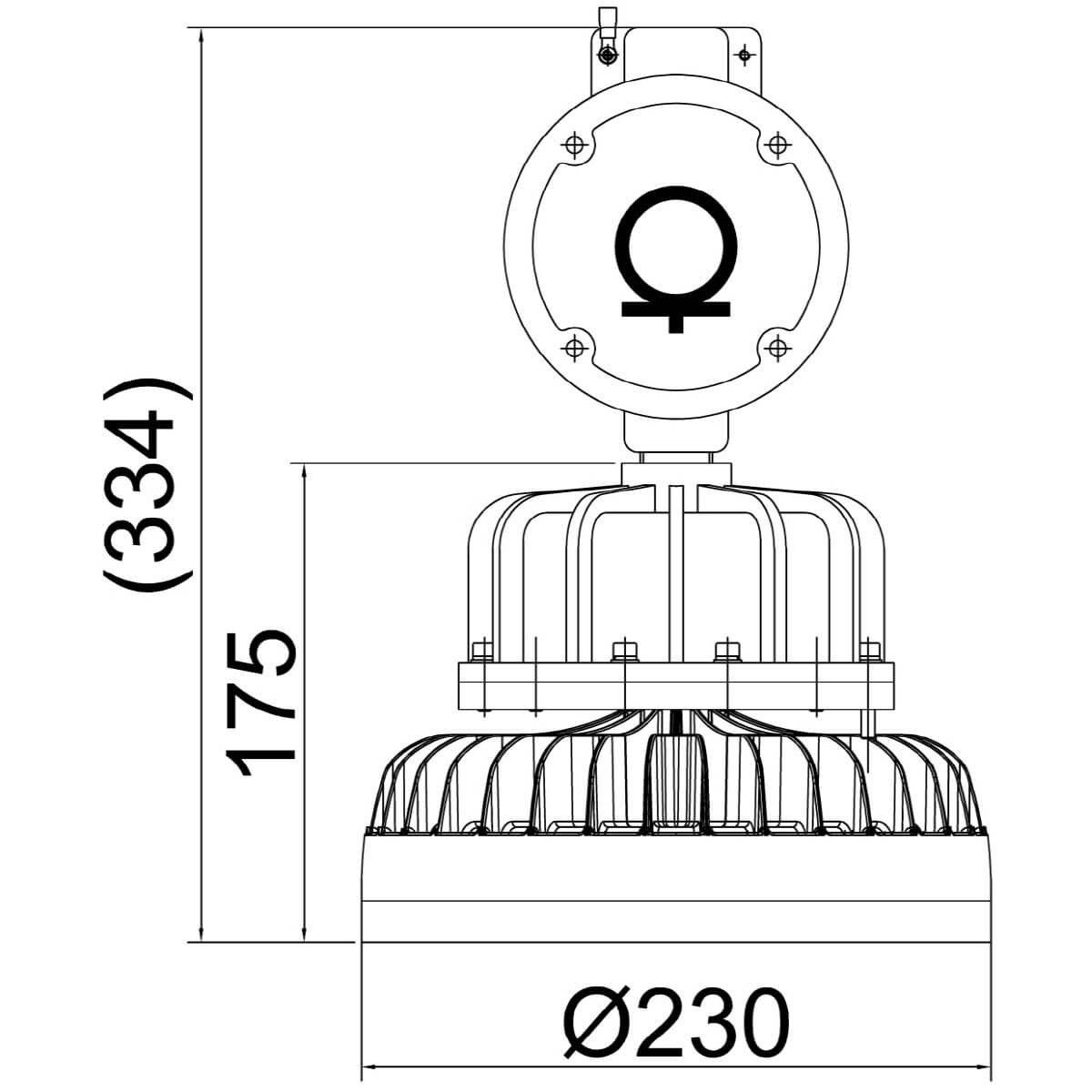

Drawing
Material (Standard)
| Mount Box | Casting Aluminium |
| SMPS Housing | Casting Aluminium |
| Bracket / Pipe | Steel |
| Main Body | Die-Casting Aluminium |
| Cover | Die-Casting Aluminium |
| Glass | Tempered Glass |
| Ring Nut | Die-Casting Aluminium |
| Painting Color | Munsell No. 7.5BG 6/1.5 |
Technical Data
| Rated Voltage | Max. AC 220V |
| Rated Wattage | 120/130/140/150W |
| Rated Frequency | 50/60Hz |
| Power Factor | 0.95 |
| Entry Size (Hub) |
PF/NPT 22C, 28C, 36C (3/4", 1", 1-1/4") M25, M32, M40 (1.5P) |
| Weight | 6.1kg |
Light Distribution Curve

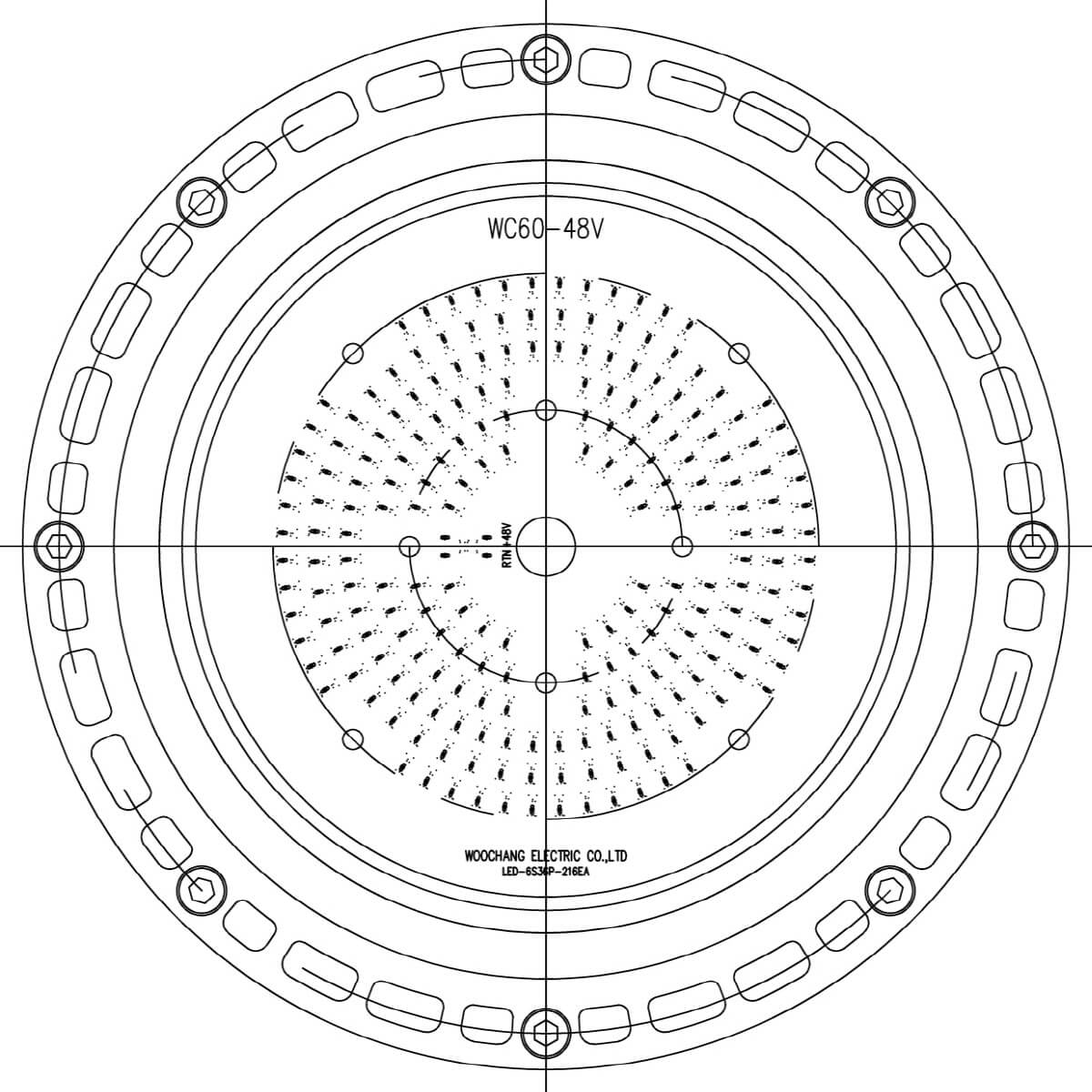

LED Specification
| Power (W) | Luminous Flux (lm) | Luminar Efficacy (lm/W) | Color Rendering (CRI) |
Color Temp. (K) |
| 30 | 4,260 | 142 | >82 |
5,000~6,500 (Typ. 5,700) |
| 40 | 5,680 | 142 | ||
| 50 | 7,000 | 140 | ||
| 60 | 8,400 | 140 |
