내압안전증/분진방폭형 LED등기구(30~60W)(일체형)
Ex db eb IIC T5 Gb IP66 (Zone 1/2)
Ex tb IIIC T100℃ Db IP66 (Zone 21/22)
Ambient Temp. : -20 ~ +40℃
Life Time : + 50,000hr

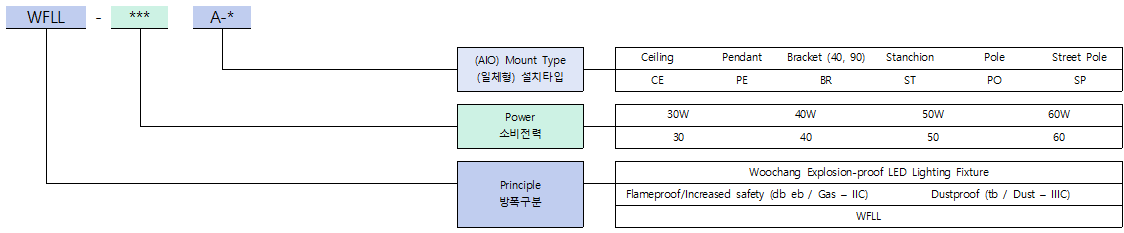

Ordering Information

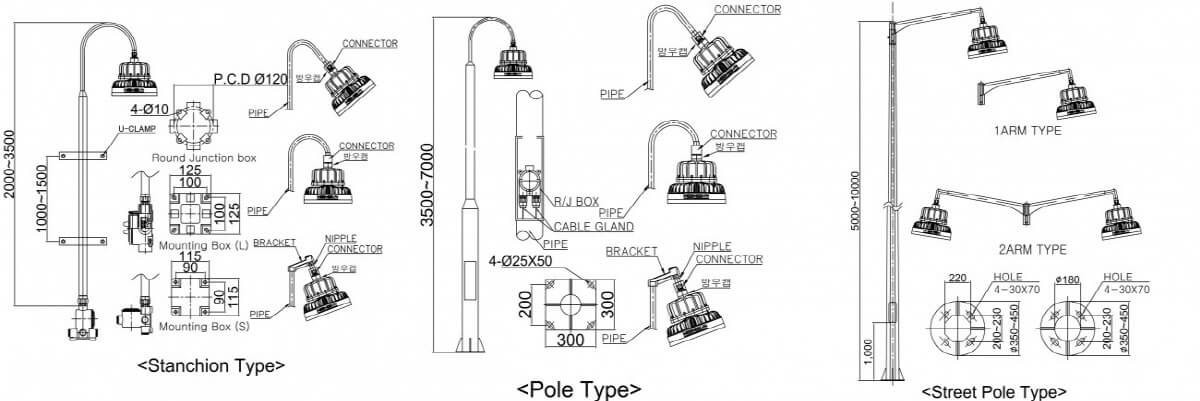

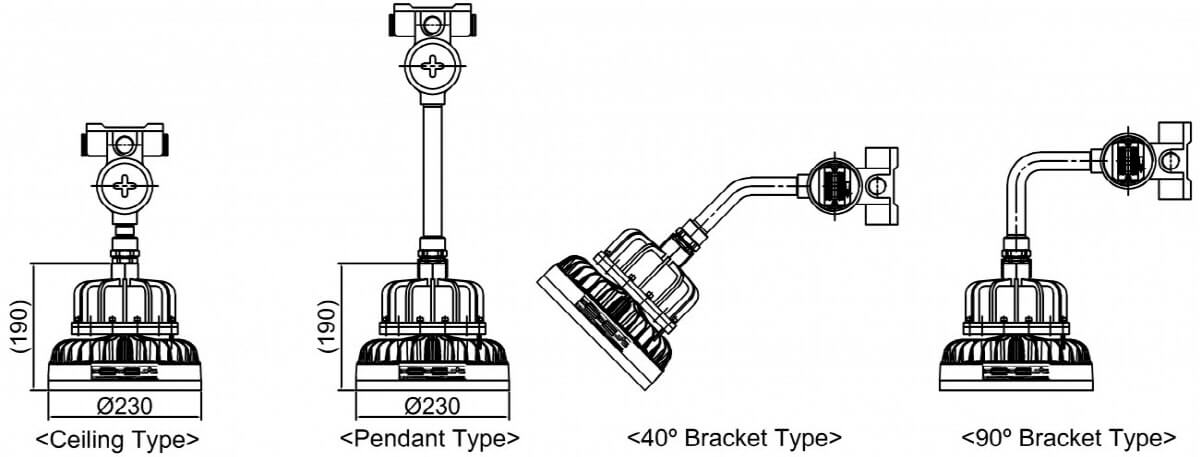

Drawing
Material (Standard)
| Mount Box | Die-Cast Aluminium Alloy |
| SMPS Housing | Casting Aluminium |
| Bracket / Pipe | Steel |
| Main Body | Die-Cast Aluminium Alloy |
| Cover | Die-Cast Aluminium Alloy |
| Glass | Tempered Glass |
| Ring Nut | Die-Cast Aluminium Alloy |
| Painting Color | Munsell No. 7.5BG 6/1.5 |
Technical Data
| Rated Voltage | Max. AC 220V |
| Rated Wattage | 30/40/50/60W |
| Rated Frequency | 50/60Hz |
| Power Factor | 0.95 |
| Entry Size (Hub) | PF / NPT 22C(3/4") |
Weight
| Mounting Type | Weight (kg) |
| Ceiling | 6.1 |
| Pendant | 6.4 |
| Bracket | 6.5 |

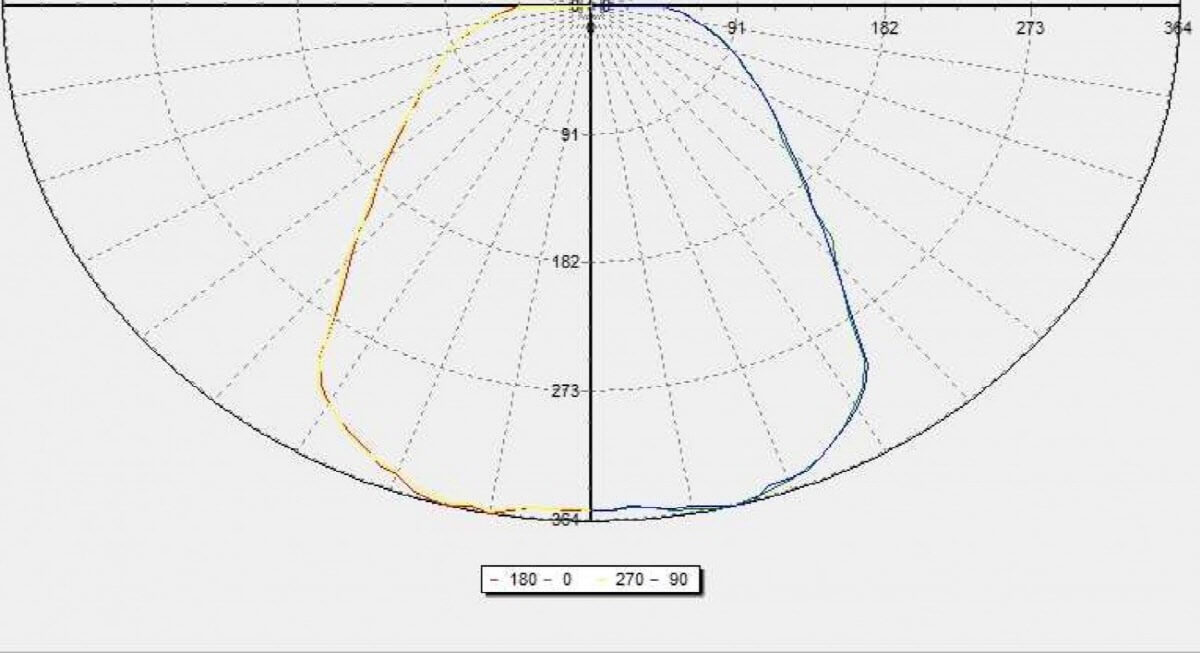

Light Distribution Curve

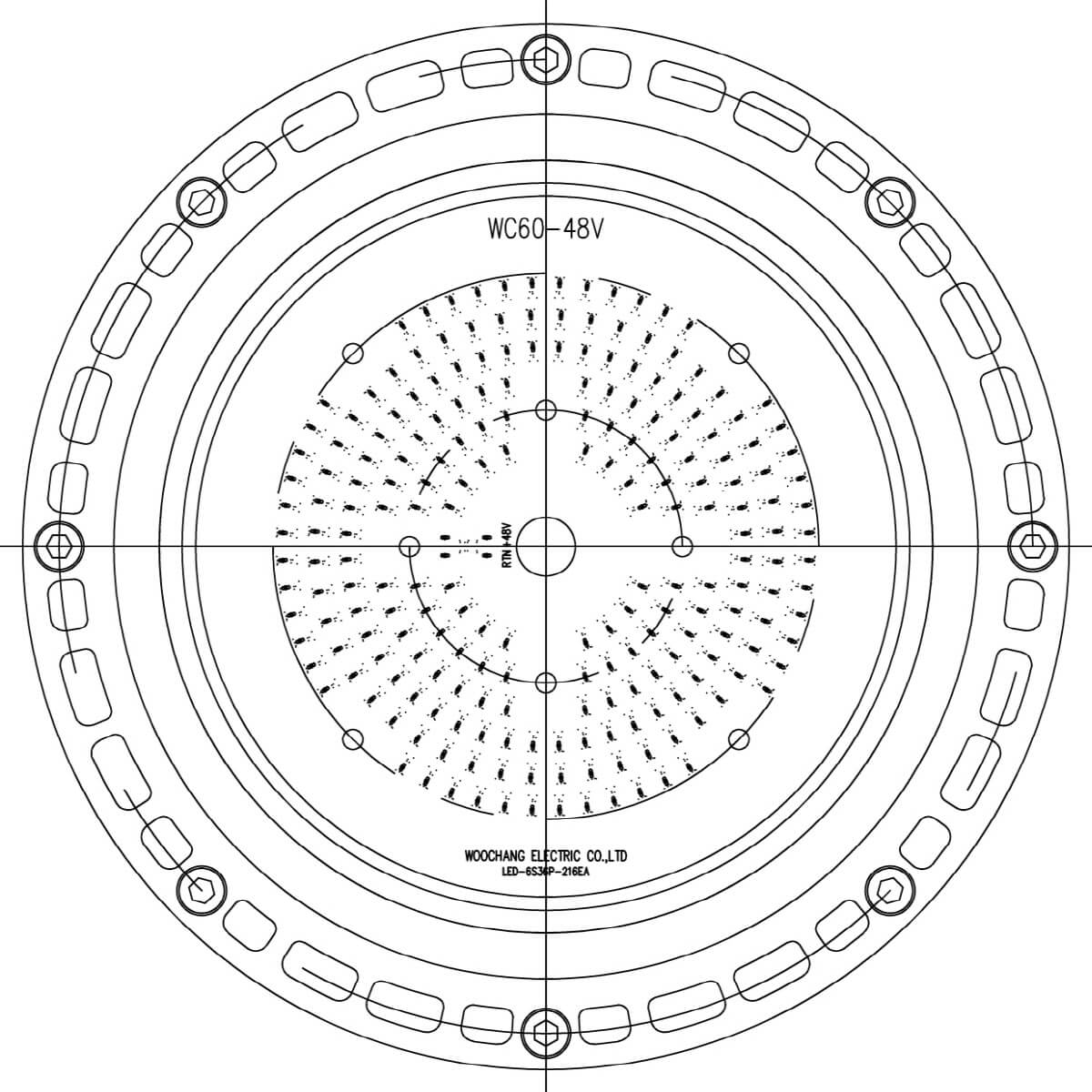

LED Specification
| Power (W) | Luminous Flux (lm) | Luminar Efficacy (lm/W) | Color Rendering (CRI) |
Color Temp. (K) |
| 30 | 4,260 | 142 | >82 |
5,000~6,500 (Typ. 5,700) |
| 40 | 5,680 | 142 | ||
| 50 | 7,000 | 140 | ||
| 60 | 8,400 | 140 |
