안전증비점화방폭형 LED등기구 (30~60W)(AC직결형)
Ex e nR II T6 IP66 (Zone 2)
Ambient Temp. : -20 ~ +40℃
Life Time : + 50,000hr

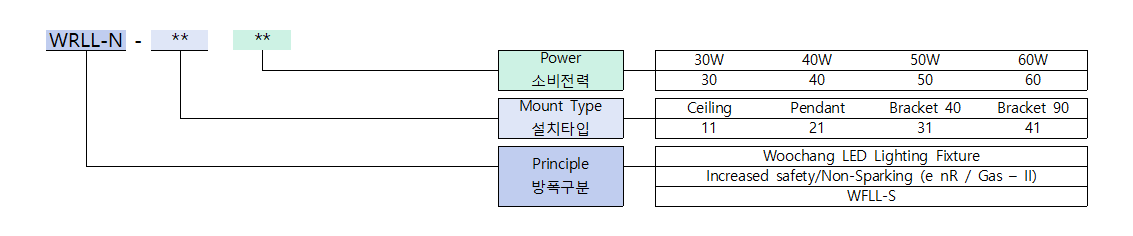

Ordering Information

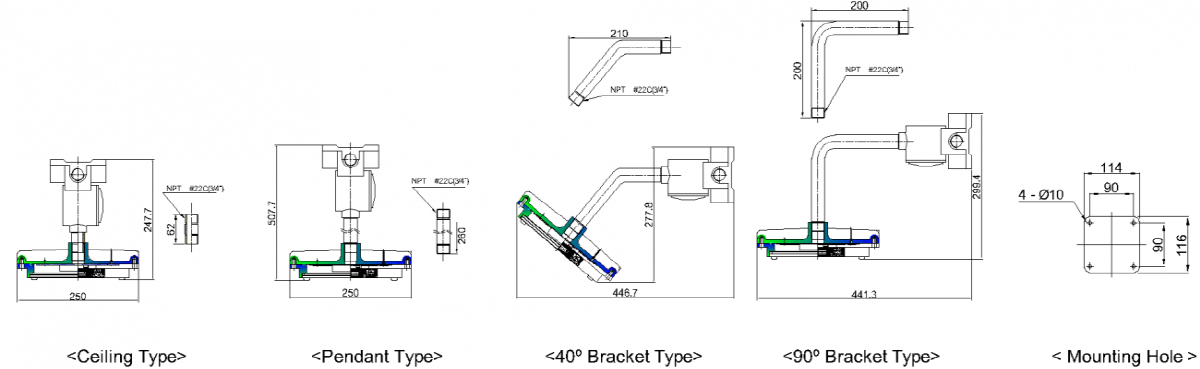

Drawing
Material (Standard)
| Mount Box | Die-Cast Aluminium Alloy |
| SMPS Housing | None |
| Bracket | Steel |
| Main Body | Cast Aluminium Alloy |
| Cover | Cast Aluminium Alloy |
| Glass | Tempered Glass |
| Cover Ring | Cast Aluminium Alloy |
| Pipe | Steel |
| Painting Color | Munsell No. 7.5BG 6/1.5 |
Technical Data
| Rated Voltage | AC 220V (100V ~ 240V) |
| Rated Wattage | 30/40/50/60W |
| Rated Frequency | 50/60Hz |
| Power Factor | 0.95 |
| Entry Size (Hub) | PF / NPT 22C(3/4") |
Weight
| Mounting Type | Weight (kg) |
| Ceiling | 4.5 |
| Pendant | 4.8 |
| Bracket 40 | 4.9 |
| Bracket 90 | 4.9 |
| Pole | 12.8 |
Light Distribution Curve
LED Specification
| Power (W) | Luminous Flux (lm) | Luminar Efficacy (lm/W) | Color Rendering (CRI) |
Color Temp. (K) |
| 30 | 3,300 | 110 | >80 |
5,000~6,500 (Typ. 5,700) |
| 40 | 4,400 | 110 | ||
| 50 | 5,250 | 105 | ||
| 60 | 6,300 | 105 |
