Dustproof Type Junction Box
Ex tb IIIC T85℃ Db IP66 (Zone 21/22)
Ambient Temp. : -20 ~ +40℃

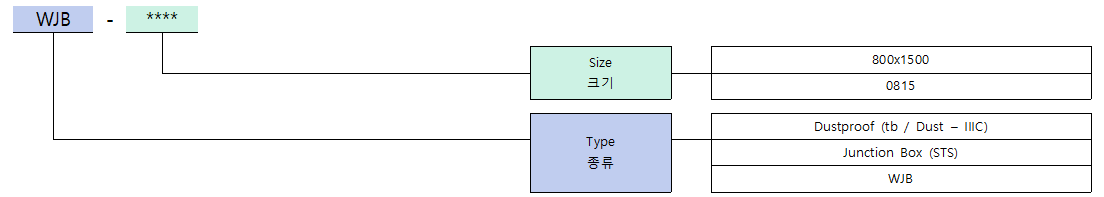

Ordering Information
Material (Standard)
| Body & Cover | Stainless Steel |
Technical Data
| Rated Voltage | Max. 600 Vac |
| Rated Frequency | 50/60Hz |
Box Specification
| Model | Size(mm) | T/B | |
| No. | L*W*H | Max. A | Max. P |
| WJB-0815 | 800*1500*375 | 400A | 400P |

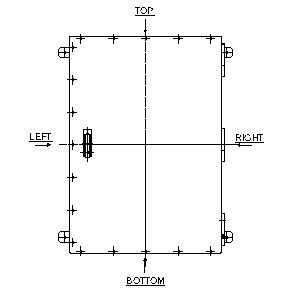

Box Detail Dimension & Drawing
| Model |
Dimension(mm) |
|||||
| No. |
A |
B | C | D | X | H |
| WJB-0815 | 800 | 1500 | 850 | 1350 | Φ12 | 375 |

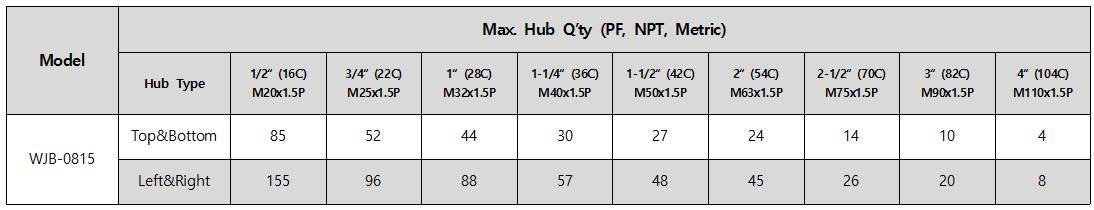

Hub Type Q'ty
