Flameproof/Dustproof Type Junction Box (IIB+H2)
FCJB-Series / FCJB-TD-Series
Flameproof/Dustproof Type Junction Box
Ex d IIB+H₂ T6 IP65 (Zone 1/2)
Ex tD A21 IP65 T85℃ (Zone 21/22)
Ambient Temp. : -20 ~ +40℃
LIST

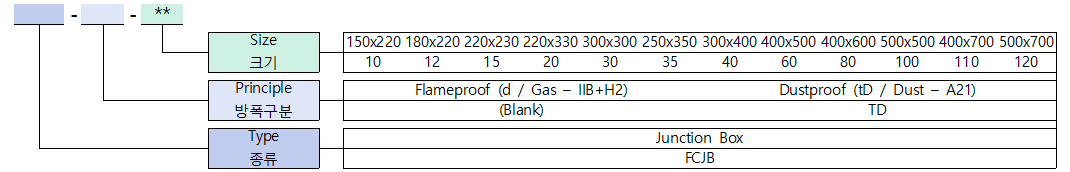

Ordering Information

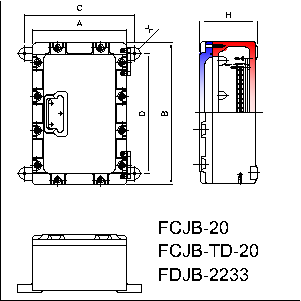

Drawing





Material (Standard)



Body & Cover Cast Aluminium Alloy

Sunshade Cover

(Option)

 STS 304 / EGI
Painting Color Munsell No. 7.5BG 6/1.5

*Customers can order other painting color.



Technical Data



Rated Voltage Max. 600 Vac
Rated Frequency 50/60Hz



Box Specification



Model Size(mm) T/B
No. L*W*H Max. A Max. P

FCJB-10

FCJB-TD-10

 150*220*132 20A 15P

FCJB-12

FCJB-TD-12

 180*220*135 20A 12P

FCJB-15

FCJB-TD-15

 220*230*136 20A 15P

FCJB-20

FCJB-TD-20

 220*330*130 20A 20P

FDJB-2233

 220*330*135 200A 20P

FCJB-30

 300*300*195 20A 30P

FCJB-TD-30

 200A 30P

FCJB-35

FCJB-35-TD

 250*350*150 20A 35P

FCJB-40

FCJB-TD-40

 300*400*210 20A 40P

FCJB-60

FCJB-TD-60

 400*500*225 20A 60P

FCJB-80

FCJB-TD-80

 400*600*235 20A 80P

FCJB-100

 500*500*230 20A 100P

FCJB-TD-100

 200A 100P

FCJB-110

FCJB-TD-110

 400*700*260 20A 100P

FCJB-120

 500*700*290 20A 120P

FCJB-TD-120

 200A 120P



Box Detail Dimension





Model

Dimension(mm)
No.

A

 B C D X H

FCJB-10

FCJB-TD-10

 150 220 185 165 Φ10 132

FCJB-12

FCJB-TD-12

 180 220 220 160 Φ10 135

FCJB-15

FCJB-TD-15

 220 230 255 187 Φ10 136

FCJB-20

FCJB-TD-20

 220 330 255 280 Φ12 130

FDJB-2233

 135

FCJB-30

FCJB-TD-30

 300 300 340 240 Φ12 195

FCJB-35

FCJB-35-TD

 250 350 290 270 Φ12 150

FCJB-40

FCJB-TD-40

 300 400 350 300 Φ15 210

FCJB-60

FCJB-TD-60

 400 500 460 400 Φ15 225

FCJB-80

FCJB-TD-80

 400 600 460 500 Φ15 235

FCJB-100

FCJB-TD-100

 500 500 560 400 Φ15 230

FCJB-110

FCJB-TD-110

 400 700 475 570 Φ15 260

FCJB-120

FCJB-TD-120

 500 700 565 600 Φ15 290

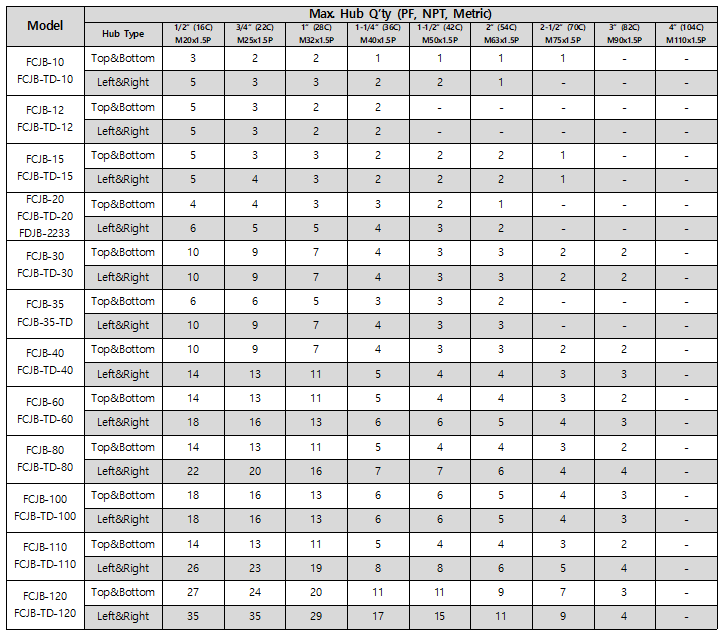

Hub Type Q'ty



Product CAD Drawing (dwg) & Catalog (pdf)



*The Drawing file(dwg) is written by AutoCAD 2000 version.

*For more information, Please contact us by mail.

FCJB-Series.zip
DOWNLOAD
FCJB-TD-Series.zip
DOWNLOAD
FCJB-Series_IIB_H2.pdf
DOWNLOAD
