Increased Safety/Dustproof Type Junction Box

WJB-Series

Increased Safety/Dustproof Type Junction Box
Ex e II T5 IP65 (Zone 1/2) (WJB-40/60/100)
Ex e IIC T5/T6 IP66 (Zone 1/2), Ex tD A21 IP66 T100℃/T85℃ (Zone 21/22) (WJB-22)
Ex e IIC T4/T5 IP66 (Zone 1/2), Ex tD A21 IP66 T135℃/T100℃ (Zone 21/22) (WJB-55)
Ambient Temp. : -20 ~ +40℃

LIST

FEATURES DATA

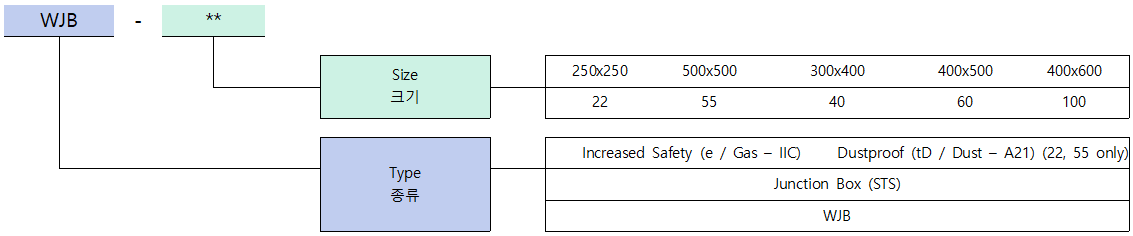

Ordering Information

Drawing

Material (Standard)

Body & Cover

Stainless Steel

Technical Data

Rated Voltage	Max. 600 Vac
Rated Frequency	50/60Hz

Box Specification

Model	Size(mm)	T/B
No.	LWH	Max. A
WJB-22	250250200	125A
WJB-55	500500200	125A
WJB-40	300400204	15A
WJB-60	400500204	15A
WJB-100	400600204	15A

Box Detail Dimension

Model	Dimension(mm)
No.	A	B	C	D	X	H
WJB-22	250	250	300	200	Φ11	200
WJB-55	500	500	550	400	Φ11	200
WJB-40	300	400	350	300	Φ12	204
WJB-60	400	500	450	400	Φ15	204
WJB-100	400	600	450	400	Φ15	204

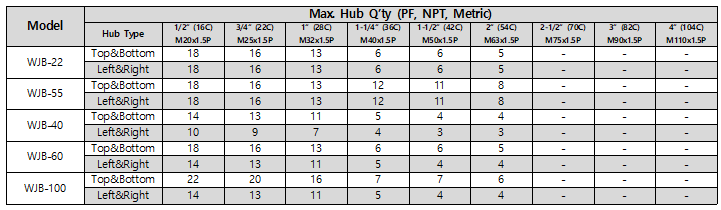

Hub Type Q'ty

Product CAD Drawing (dwg) & Catalog (pdf)

*The Drawing file(dwg) is written by AutoCAD 2000 version.

*For more information, Please contact us by mail.

WJB-Series.zip

DOWNLOAD

WJB-Series.pdf

DOWNLOAD
