Flameproof Type Plug & Receptacle (20A)
Ex db IIB+H2 T6 (Zone 1/2)
Ambient Temp. : -20 ~ +40℃

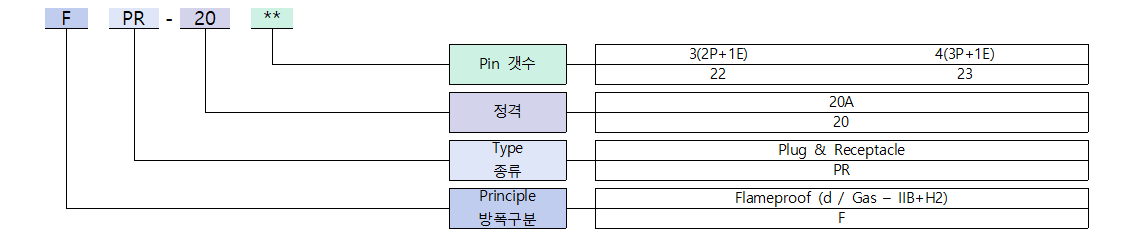

Ordering Information
Material (Standard)
| Body & Cover | Die-Cast Aluminium Alloy |
Technical Data
| Rated Voltage | Max. 380 Vac |
| Rated Frequency | 50/60Hz |
| Rated Current | 20 A |
Box Specification
|
Model |
Type |
Model Number |
Number of Pins |
Hub |
Weight |
| FPR-20 | 1 Gang | FPR-2022 | 3 (2P+1E) | 2 - PF 3/4" (22C) | 2kg |
| FPR-2023 | 4 (3P+1E) |

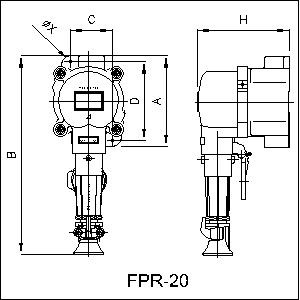

Box Detail Dimension & Drawing
|
Dimension(mm) |
|||||
|
A |
B | C | D | X | H |
| 136 | 297.5 | 64 | 118 | 8 | 140 |
