Weatherproof Type Plug & Receptacle
* This Product is NOT Ex Product.

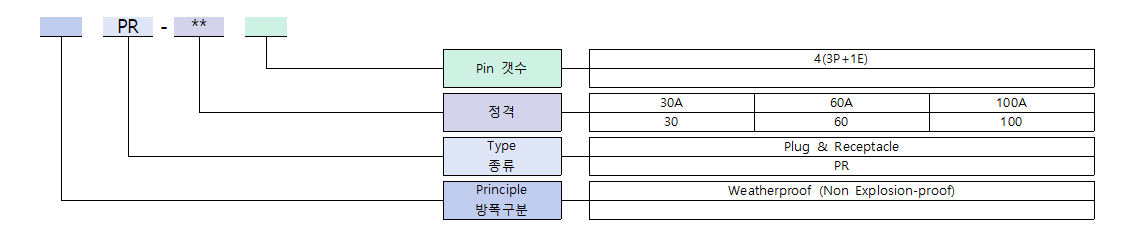

Ordering Information
Material (Standard)
| Body & Cover | Cast Aluminium Alloy |
Technical Data
| Rated Voltage | Max. 460 Vac |
| Rated Frequency | 60Hz |
Box Specification
|
Model |
Type |
Rated Current |
Number of Pins |
Hub |
Weight |
| PR-30 | 1 Gang | 30A | 4 (3P+1E) | PF 1" (28C) | 3.2kg |
| PR-60 | 60A | 2 - PF 1-1/2" (42C) | 4.5kg | ||
| PR-100 | 100A | 2 - PF 2" (54C) | 8.5kg |

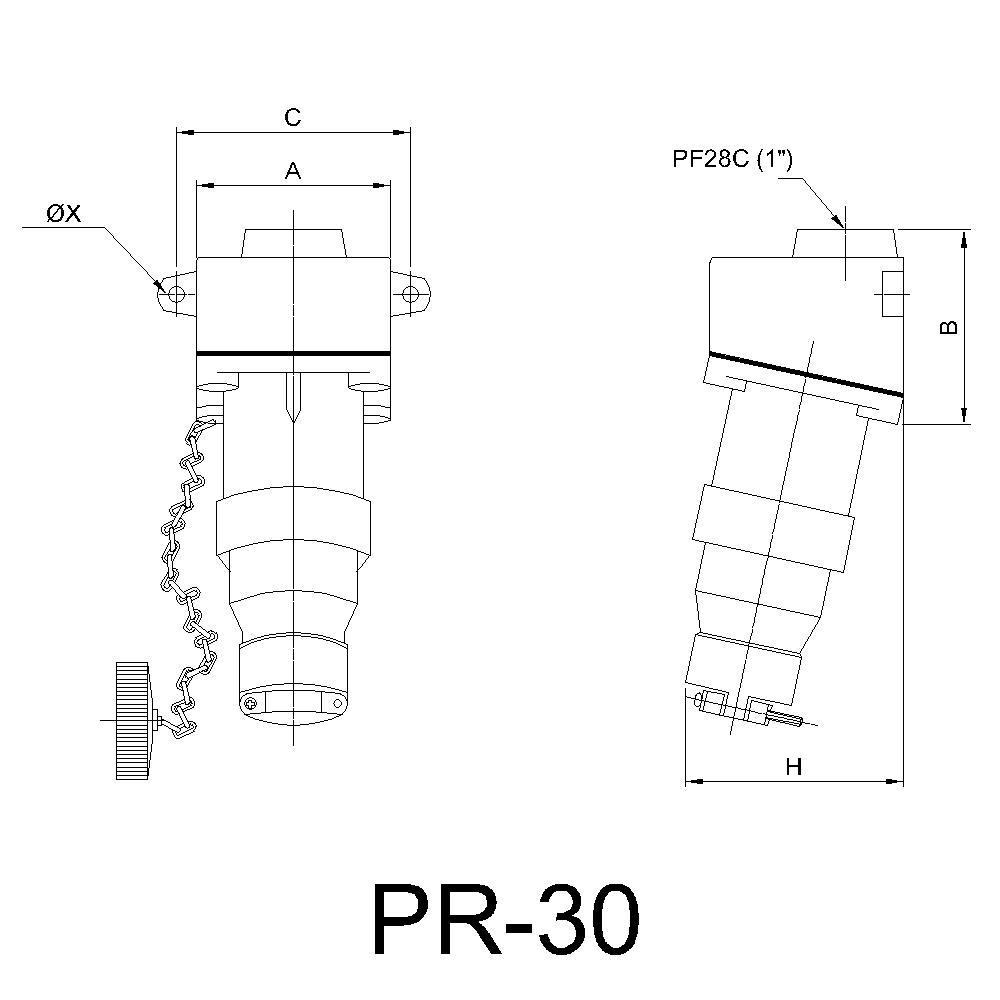

Box Detail Dimension & Drawing
|
Model |
Dimension(mm) |
|||||
|
A |
B | C | D | X | H | |
| PR-30 | 111 | 112 | 134 | - | 10 | 125 |
| PR-60 | 150 | 200 | 125 | 174 | 10 | 85 |
| PR-100 | 160 | 300 | 130 | 277 | 10 | 110 |
Product Catalog (pdf)
*For more information, Please contact us by mail.
