Flameproof Type Indicator Box (IIB)
IND-Series
Flameproof Type Indicator Box
Ex d IIB T6 IP65 or IP66 (Zone 1/2)
Ambient Temp. : -20 ~ +40℃

Ordering Information





Drawing





Material (Standard)



Body & Cover Cast Aluminium Alloy

Sunshade Cover

(Option)

STS 304 / EGI
Painting Color Munsell No. 7.5BG 6/1.5

*Customers can order other painting color.



Technical Data



Rated Voltage Max. 600 Vac
Rated Frequency 50/60Hz



Box Specification



Model Size(mm) T/B IP Degree
No. L*W*H Max. A

IND-23

220*330*135 - IP65

IND-45

400*500*230 200A IP65

IND-35

340*500*215 20A IP66

IND-46

400*600*240 20A IP66

IND-57

500*700*290 10A IP66
IND-68 600*800*300 20A IP66



Box Window & Switch Specification



Model Window Switch
No. Size (L*W) EA Size (L*W) EA EA

IND-23

92*192 1 - - -

IND-45

112*96 2 96*48 4 24
105*24 2 80*20 2

IND-35

96*48 8 72*36 10 24
215*115 1 - -

IND-46

72*72 6 105*24 5 28
80*20 5 - -
IND-57 96*48 27 72*72 6 77
105*24 6 80*20 6
IND-68 96*48 27 72*72 6 77
105*24 6 80*20 6

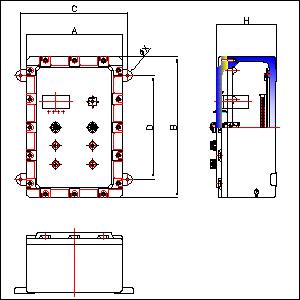

Box Detail Dimension





Model

Dimension(mm)

No.

A

B C D X H

IND-23

220 330 255 280 Φ12 135

IND-45

400 500 460 400 Φ15 230

IND-35

340 500 380 370 Φ15 215

IND-46

400 600 460 500 Φ15 240

IND-57

500 700 565 600 Φ15 290
IND-68 600 800 660 660 Φ18 300

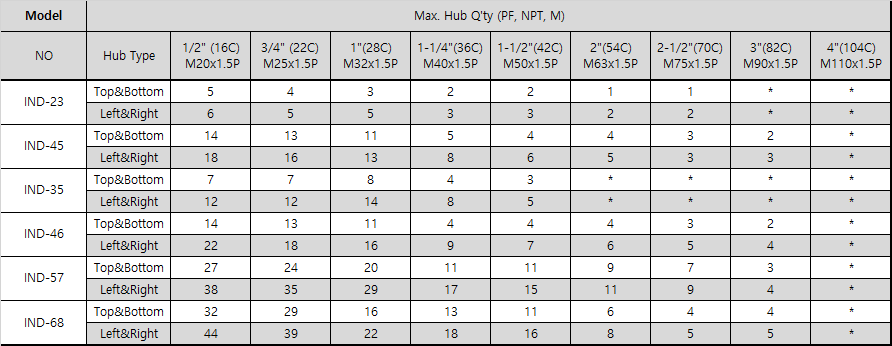

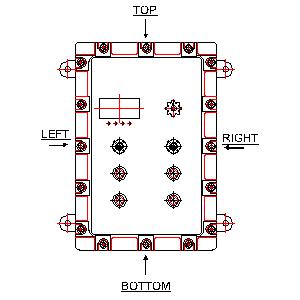

Hub Type Q'ty



Product CAD Drawing (dwg) & Catalog (pdf)



*The Drawing file(dwg) is written by AutoCAD 2000 version.

*For more information, Please contact us by mail.

IND-Series.zip
IND-Series_IIB.pdf
