Flameproof/Dustproof Type Control Box (IIB+H₂)
FCJB-Series / FCJB-TD-Series
Flameproof/Dustproof Type Control Box
Ex d IIB+H₂ T6 IP65 (Zone 1/2)
Ex tD A21 IP65 T85℃ (Zone 21/22)
Ex d IIB+H₂ T6 IP66 (Zone 1/2) (FOB-V100-1)
Ambient Temp. : -20 ~ +40℃

Ordering Information





Drawing





Material (Standard)



Body & Cover Cast Aluminium Alloy

Sunshade Cover

(Option)

STS 304 / EGI
Painting Color Munsell No. 7.5BG 6/1.5

*Customers can order other painting color.



Technical Data



Rated Voltage Max. 600 Vac
Rated Frequency 50/60Hz



Box Specification



Model Size(mm) T/B Switch
No. L*W*H Max. A Max. EA

FCJB-10

FCJB-TD-10

150*220*132 20A 3

FCJB-12

FCJB-TD-12

180*220*135 20A 6

FCJB-15

FCJB-TD-15

220*230*136 20A 6

FCJB-20

FCJB-TD-20

220*330*130 20A 8

FCJB-30

FCJB-TD-30

300*300*195 20A 9

FCJB-35

FCJB-35-TD

250*350*150 20A 12

FCJB-40

FCJB-TD-40

300*400*210 20A 15

FCJB-60

FCJB-TD-60

400*500*225 20A 30

FCJB-80

FCJB-TD-80

400*600*235 20A 40

FCJB-100

FCJB-TD-100

500*500*230 20A 30

FCJB-110

FCJB-TD-110

400*700*260 20A 50

FCJB-120

FCJB-TD-120

500*700*290 20A 48

FOB-V100-1

600*700*300

20A

(+100A MCCB)

20



Box Detail Dimension





Model

Dimension(mm)

No.

A

B C D X H

FCJB-10

FCJB-TD-10

150 220 185 165 Φ10 132

FCJB-12

FCJB-TD-12

180 220 220 160 Φ10 135

FCJB-15

FCJB-TD-15

220 230 255 187 Φ10 136

FCJB-20

FCJB-TD-20

220 330 255 280 Φ12 130

FCJB-30

FCJB-TD-30

300 300 340 240 Φ12 195

FCJB-35

FCJB-35-TD

250 350 290 270 Φ12 150

FCJB-40

FCJB-TD-40

300 400 350 300 Φ15 210

FCJB-60

FCJB-TD-60

400 500 460 400 Φ15 225

FCJB-80

FCJB-TD-80

400 600 460 500 Φ15 235

FCJB-100

FCJB-TD-100

500 500 560 400 Φ15 230

FCJB-110

FCJB-TD-110

400 700 475 570 Φ15 260

FCJB-120

FCJB-TD-120

500 700 565 600 Φ15 290

FOB-V100-1

600 700 660 560 Φ15 300

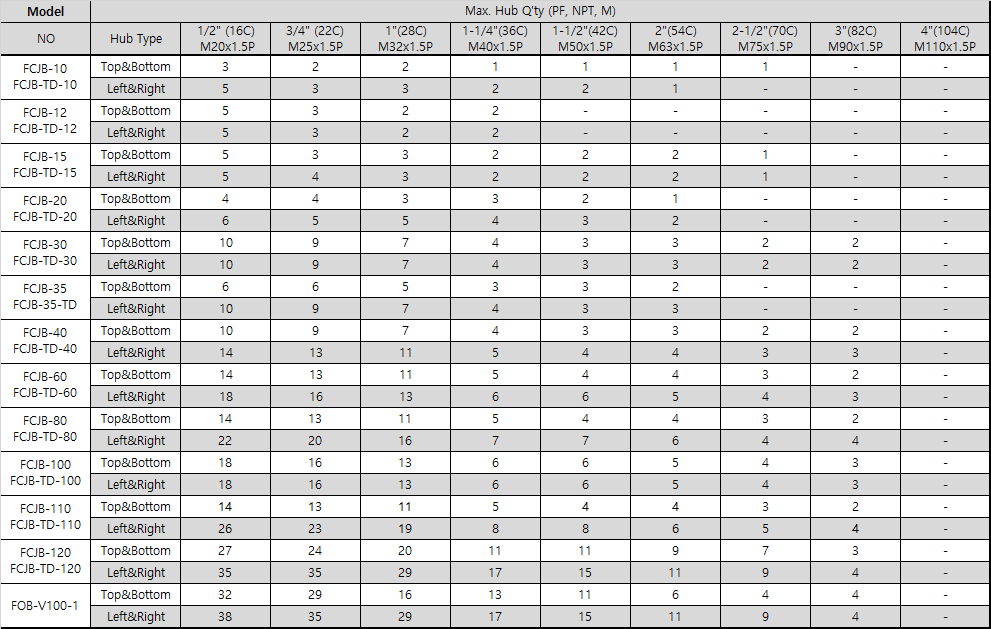

Hub Type Q'ty



Product CAD Drawing (dwg) & Catalog (pdf)



*The Drawing file(dwg) is written by AutoCAD 2000 version.

*For more information, Please contact us by mail.

FCJB-Series.zip
FCJB-TD-Series.zip
FCJB-Series_IIB_H2.pdf
